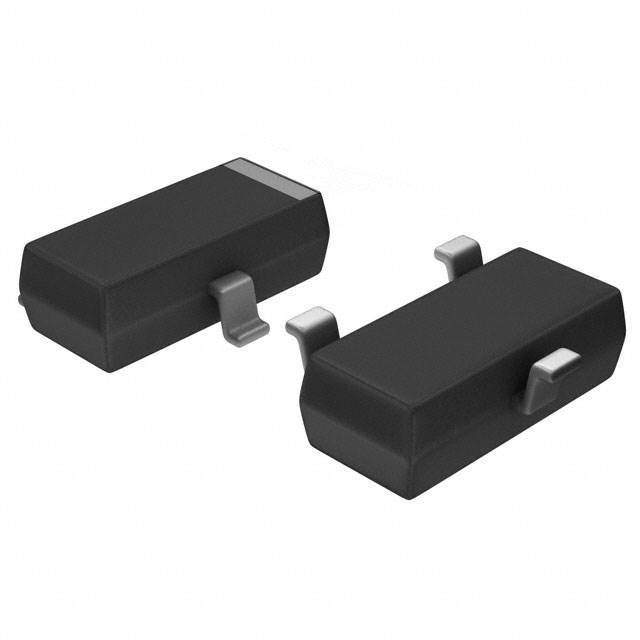

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Diode Array 1 Pair Series Connection Standard 30V 50mA Surface Mount TO-236-3, SC-59, SOT-23-3
MMBD1703A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | SOT-23-3 |
| Voltage Rating (DC) | 30.0 V |
| Current Rating | 150 mA |
| Forward Voltage | 1.1V @50mA |
| Reverse recovery time | 1 ns |
| Maximum Forward Voltage (Max) | 1.1V @50mA |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Junction Temperature | 150℃ (Max) |
| Show | |
| Size-Length | 2.9 mm |
| Size-Width | 1.3 mm |
| Size-Height | 0.93 mm |
| Product Lifecycle Status | Unknown |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
