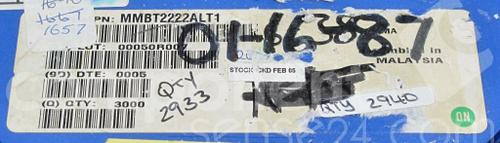

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

MMBT2222ALT1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Frequency	300 MHz
Voltage Rating (DC)	40.0 V
Current Rating	600 mA
Power Dissipation	0.3 W
Breakdown Voltage (Collector to Emitter)	40 V
hFE Min	100 @150mA, 10V
Input Power (Max)	225 mW
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	300 mW
	Show
Material	Silicon
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
HK STC License	NLR
