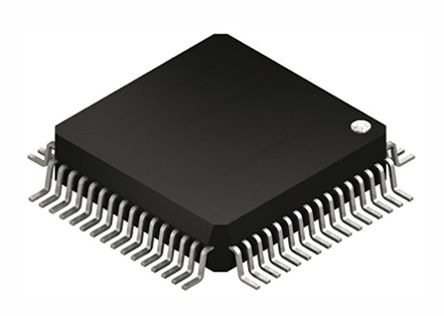

Image is for your reference only,please check specifications for details

MSP430F147IPM - TI
Manufacturer:
TI
ManyChip's Part#:
MC4933083
Category:
Microcontroller, MCU IC
Package:
LQFP-64
Datasheet:
Datasheet 3D Model
Description:
16Bit Ultra-Low-Power Microcontroller, 32KB Flash, 1KB RAM, 12Bit ADC, 2 USARTs, HW multiplier 64-LQFP -40℃ to 85℃
Stock Locations:
Availability:
236 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.43

Updated at 31/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MSP430F147IPM is a 16-bit ultra-low-power Mixed-signal Microcontroller features a powerful 16-bit RISC MSP430 CPU, 16-bit registers and constant generators that contribute to maximum code efficiency. The architecture combined with five low-power modes, is optimized to achieve extended battery life. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less than 6µs. The device configurations with two 16-bit timers, 12-bit A/D converter, a comparator, a hardware multiplier and 48 general-purpose I/O pins. This device operates at a maximum frequency of 8MHz.
16-bit RISC architecture, 125ns instruction cycle time
12-bit ADC with internal reference, sample-and-hold and autoscan feature
16-bit Timer_B with 7 Capture/Compare with shadow registers
16-bit Timer_A with 3 Capture/Compare registers
On-chip comparator
Serial on-board programming
No external programming voltage needed
Programmable code protection by security fuse
Two USARTs Interface
280µA at 1MHz, 2.2V Active mode (AM) power consumption

Show

MSP430F147IPM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	LQFP-64
Frequency	8 MHz
Supply Voltage (DC)	3.30 V, 3.60 V (max)
Operating Voltage	1.8VDC ~ 3.6VDC
Number of Positions	64 Position
Clock Speed	8 MHz
RAM Memory Size	1 KB
Number of Bits	16 Bit
FLASH Memory Size	32 KB
Number of I/O Pins	48 IO
Access Time	8.00 µs
Core Architecture	MSP430
Memory Size	32000 B
Number of UARTs	2 UART
Number of ADCs	1 ADC
FRAM Memory Size	0 B
Number of Inputs and Outputs	48 IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.8V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.8 V
	Show
Size-Length	10.2 mm
Size-Width	10.2 mm
Size-Height	1.45 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2018/06/27
