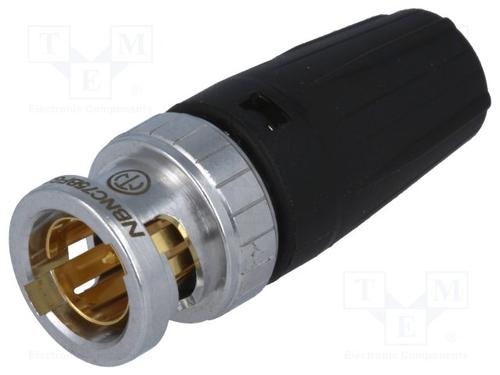

Image is for your reference only,please check specifications for details

NBNC75BFG7 - Neutrik
Manufacturer:
Neutrik
ManyChip's Part#:
MC14320866
Category:
RF Coaxial Connector, RF Connector
Datasheet:
Datasheet 3D Model
Description:
RF Connectors / Coaxial Connectors Cable end rear twist Cable O.D. 4 - 8mm
Stock Locations:
Availability:
71 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.12

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NBNC75BFG7. is a rearTWIST HD BNC Cable Connector with gold-plated brass contacts and bayonet locking device. This BNC cable connector offers a true 75R design and is perfectly suitable for HD applications. The patented rearTWIST boot guarantees easy access even in high density applications. The connector is suitable for Argosy Image 360, Belden 1855ENH, Bryant BD SD01, Canford SDV, Canford SDV-LFH, Canford SDV-X-LFH, Cordial CVI 06-28, Cordial CVI 06-28HD, Cordial CVI 06-28HD-FRNC, Cordial CVI 3-7, Draka 0.6/2.8 AF, Draka 0.6 L/2.8 AF, Extron BNC-5RC, Fuzion SD-1, Klotz V06/28, Klotz VMXx75Y, Kabeltronik HFV 0.6/2.8 AF- FRNC, Kabeltronik MVP 5x 0.6/2.8 AF-FRNC, Nexans HF 75 0,6/2,9 02YS(ST)CH, Percon VK5, Sommer 600-0101M, Sommer 600-0104M cables.
rearTWIST principle locking/unlocking using easily accessible soft touch boot (patent DE 100 48507)
True 75R design meets stringent HDTV/DVD requirements
Leading area avoids tilting due to side forces to protect contacts from deformation
Snug-fit centre pin insert provides tactile feedback
Shield & jacket crimp technology prevents problem of an exposed grounding braid on cable assemblies
Excellent cable protection and retention
Precise Swiss machined brass parts for outstanding durability
* * >5GR Insulation resistance
<50V Voltage rating
-30 to +85°C Temperature range

Show

NBNC75BFG7 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Gender	Male
Contact Plating	Gold
Voltage Rating (AC)	500 V
Orientation	Straight
Number of Mating Cycles	1000 Cycle
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	30 ℃
	Show
Color	Black
Contact Material	Brass
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
HTS Code	8536694010
ECCN Code	EAR99
