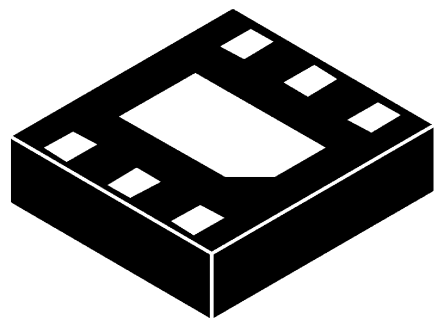

Image is for your reference only,please check specifications for details

NCP606MNADJT2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC19140637
Category:
Voltage Regulator
Package:
DFN-6
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCP606MNADJT2G LDO Voltage Regulator, Adjustable, 1.5V to 6V input, 450mV drop., 1.25V to 5V/0.5A out, DFN-6
Stock Locations:
Availability:
1,199 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.74

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Use this LDO NCP606MNADJT2G linear regulator from ON Semiconductor to vary your voltage levels to your desired level. It has an overall accuracy of ±1.5 %. Its typical dropout voltage at current is 0.45@500mA V. This voltage regulation device"s single output can produce a current up to 0.675 A. Supply your circuit with sufficient power by implementing this, which requires a minimum input voltage of 1.5 V that does not exceed 6 V. With an adjustable output that has a voltage of 1.25 to 5 V, this is power management at its best. At a load regulation of 10mV(Typ) and line regulation of 4mV(Typ) a constant current can be produced at the output of your circuit. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. The maximum dropout voltage is 0.47@500mA V. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 125 °C. Its polarity is positive.

Show

NCP606MNADJT2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	DFN-6
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	1.25V ~ 5V
Output Current	500 mA
Supply Current	180 µA
Number of Positions	6 Position
Polarity	P-Channel
Quiescent Current	0.145 mA
voltage rating	0.45V @500mA
Thermal Resistance	18℃/W (RθJC)
Input Voltage (Max)	6 V
Input Voltage (Min)	1.5 V
Output Voltage (Max)	5 V
Output Voltage (Min)	1.25 V
Output Current (Max)	675 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1.5 %
Supply Voltage	1.5V ~ 6V
Input Voltage	1.5V ~ 6V
	Show
Size-Length	3 mm
Size-Width	3.3 mm
Size-Height	0.85 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
