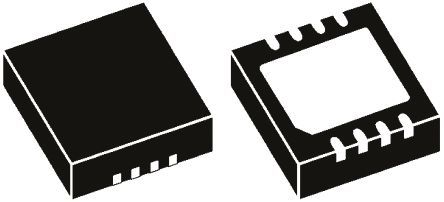

Image is for your reference only,please check specifications for details

NCP6324BMTAATBG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC27386529
Category:
DC to DC Converter
Package:
WDFN-8
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 2.5V to 5.5V Step Down Single-Out 0.6V to 5.5V 2A 8Pin WDFN EP T/R
Stock Locations:
Availability:
280 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.65

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Adjust the voltage level of your devices with this NCP6324BMTAATBG DC to DC converter from ON Semiconductor.

Show

NCP6324BMTAATBG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	WDFN-8
Number of Outputs	1 Output
Output Voltage	0.6V ~ 5.5V
Output Current	2 A
Number of Positions	8 Position
Switching Frequency	3.3 MHz
Switching Current	2.8 A
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.5 V
Output Voltage (Max)	5.5 V
Output Voltage (Min)	600 mV
Output Current (Max)	2 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	2.5V ~ 5.5V
	Show
Size-Length	2 mm
Size-Width	2 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
