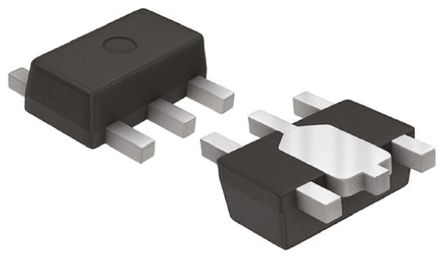

Image is for your reference only,please check specifications for details
- NCP694HADJHT1G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC100008772
-
Category:Voltage Regulator
-
Package:SOT-89-5
-
Datasheet:Datasheet 3D Model
-
Description:NCP694HADJHT1G, LDO Voltage Regulator, Adjustable 1A, 6V, 1.4 to 6Vin, 5Pin SOT-89
-
Stock Locations:
-
Availability:713 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.4
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Don"t let unpredictable voltage levels ruin your circuit! Use this LDO NCP694HADJHT1G linear regulator from ON Semiconductor to control your voltage levels! This device has a maximum power dissipation of 900 mW. Its typical dropout voltage at current is 0.18@300mA|0.56@1A V. This voltage regulation device"s single output can produce a current up to 1(Min) A. By only needing an input voltage of 1.4 V with a maximum of 6 V, this is the best way to control the power in your circuit. With an adjustable output that has a voltage of 1(Min) V, this is power management at its best. At a load regulation of 15mV and line regulation of 0.2%V your circuit is capable of maintaining a constant voltage level at your output. Its maximum power dissipation is 900 mW. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C. The maximum dropout voltage is 0.32@300mA V. Its polarity is positive.
NCP694HADJHT1G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SOT-89-5 |
| Halogen Free Status | Halogen Free |
| Number of Outputs | 1 Output |
| Output Voltage | 1V ~ 6V |
| Output Current | 1 A |
| Number of Positions | 5 Position |
| Polarity | P-Channel |
| Power Dissipation | 0.9 W |
| voltage rating | 0.18V @300mA,0.56V @1A |
| Input Voltage (Max) | 6 V |
| Input Voltage (Min) | 1.4 V |
| Output Voltage (Max) | 6 V |
| Output Voltage (Min) | 1 V |
| Output Current (Max) | 1 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 900 mW |
| Input Voltage | 1.4V ~ 6V |
| Show | |
| Size-Length | 4.6 mm |
| Size-Width | 2.6 mm |
| Size-Height | 1.6 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
