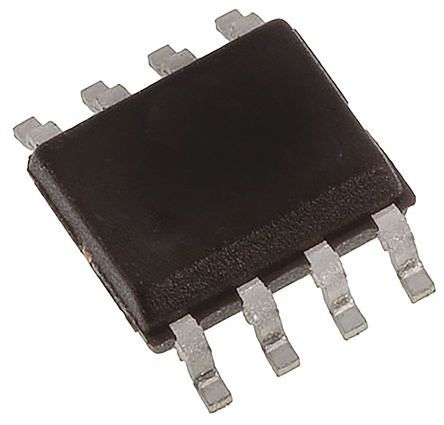

Image is for your reference only,please check specifications for details

NCV33272ADR2G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC15639215
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCV33272ADR2G Operational Amplifier, Rail-to-Rail, 2 Amplifier, 24MHz, 10V/µs, 3V to 36V, ± 1.5V to ± 18V, SOIC New
Stock Locations:
Availability:
39 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.5

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Single Supply, High Slew Rate, Low Input Offset Voltage Operational Amplifiers
The MC33272/74 series of monolithic operational amplifiers are quality fabricated with innovative Bipolar design concepts. This dual and quad operational amplifier series incorporates Bipolar inputs along with a patented Zip−R−Trim element for input offset voltage reduction. The MC33272/74 series of operational amplifiers exhibits low input offset voltage and high gain bandwidth product.
Features
•Input Offset Voltage Trimmed to 100 V (Typ)
•Low Input Bias Current: 300 nA
•Low Input Offset Current: 3.0 nA
•High Input Resistance: 16 M
•Low Noise: 18 nV/ Hz √ @ 1.0 kHz
•High Gain Bandwidth Product: 24 MHz @ 100 kHz
•High Slew Rate: 10 V/s
•Power Bandwidth: 160 kHz
•Excellent Frequency Stability
•Unity Gain Stable: w/Capacitance Loads to 500 pF
•Large Output Voltage Swing: +14.1 V/ −14.6 V
•Low Total Harmonic Distortion: 0.003%
•Power Supply Drain Current: 2.15 mA per Amplifier
•Single or Split Supply Operation: +3.0 V to +36 V or ±1.5 V to ±18 V
•ESD Diodes Provide Added Protection to the Inputs
•Pb−Free Packages are Available
•NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes

Show

NCV33272ADR2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Halogen Free Status	Halogen Free
Output Current	37 mA
Supply Current	2.15 mA
Number of Circuits	2 Circuit
Number of Positions	8 Position
Common Mode Rejection Ratio	100 dB
Bandwidth	24 MHz
Slew Rate	10.0 V/μs
Gain Bandwidth Product	24 MHz
Input Offset Voltage	2 mV
Input Bias Current	300 nA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Minimum CMRR Range	80 dB
Supply Voltage	3V ~ 36V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
