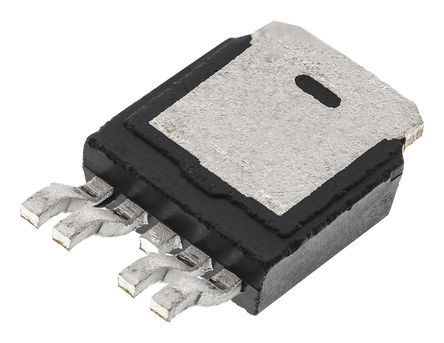

Image is for your reference only,please check specifications for details

NCV4276BDTADJRKG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC20749146
Category:
Voltage Regulator
Package:
TO-252-5
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCV4276BDTADJRKG LDO Voltage Regulator, Adjustable, 13.5V to 45V in, 250mV drop, 2.5V to 20V/0.4A out, TO-252-5
Stock Locations:
Availability:
149 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.51

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCV4276BDTADJRKG is a low‐drop Voltage Regulator designed for use in harsh environments. It has a high peak input voltage tolerance and reverse input voltage protection. It also provides over-current protection, over-temperature protection and inhibit for control of the state of the output voltage. The output is stable over a wide output capacitance and ESR range. This has improved start-up behaviour during input voltage transients.
Inhibit input
Very low current consumption
Fault protection
Short-circuit protection
Thermal overload

Show

NCV4276BDTADJRKG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-252-5
Number of Outputs	1 Output
Output Voltage	2.5V ~ 20V
Output Current	400 mA
Supply Current	200µA ~ 35mA
Number of Positions	5 Position
Quiescent Current	35 mA
voltage rating	0.25V @250mA
Input Voltage (Max)	45 V
Input Voltage (Min)	4.5 V
Output Voltage (Max)	20 V
Output Voltage (Min)	2.5 V
Output Current (Max)	0.4 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2 %
Input Voltage	4.5V ~ 40V
	Show
Size-Length	6.73 mm
Size-Width	6.22 mm
Size-Height	2.38 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
