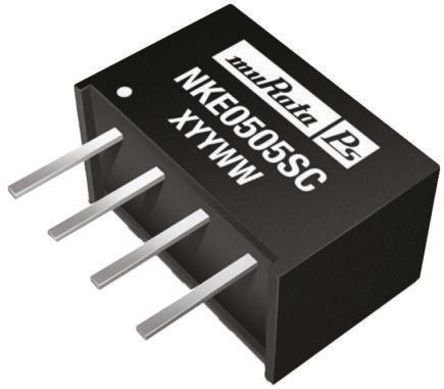

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NKE1212SC is an isolated sub-miniature single-output DC/DC Converter particularly suited to isolating and converting DC power rails. An improved efficiency, lower output ripple and 3kVDC isolation capability through state and improved technology. The galvanic isolation allows the device to be configured to provide an isolated negative rail in systems where only positive rails exist. The wide temperature range guarantees startup from -40°C and full 1W output at 85°C.
Internal SMD construction
Fully encapsulated with toroidal magnetics
No electrolytic or tantalum capacitors
0.69cm² Footprint
79% Typical efficiency
57pF Isolation capacitance

Show

NKE1212SC Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	SIP-4
Supply Voltage (DC)	12.0 V
Power Rating	1 W
Number of Outputs	1 Output
Input Voltage (DC)	10.8V ~ 13.2V
Output Voltage	12 V
Output Current	83 mA
Flammability Rating	UL 94 V-0
Power Dissipation	1 W
Output Power	1 W
Isolation Voltage	3 kV
Input Voltage (Max)	13.2 V
Input Voltage (Min)	10.8 V
Input Voltage (DC Max)	13.2 V
Input Voltage (DC Min)	10.8 v
Output Current (Max)	83 mA
Input Power (Max)	1 W
Input Power (Max)	1 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	12 V
	Show
Size-Length	11.48 mm
Size-Width	6 mm
Size-Height	7.46 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
