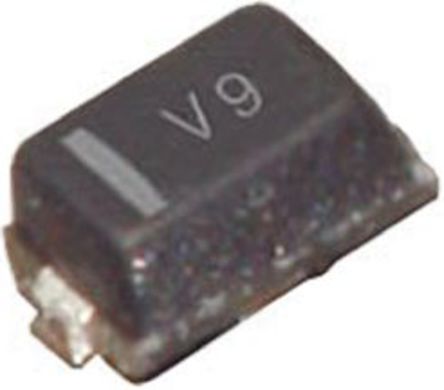

Image is for your reference only,please check specifications for details

NSR0340P2T5G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC16531703
Category:
Schottky Diode
Package:
SOD-923
Datasheet:
Datasheet 3D Model
Description:
ON Semi NSR0340P2T5G, SMT Schottky Diode, 40V 200mA, 3ns, 2Pin SOD-923
Stock Locations:
Availability:
3,186 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.07

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NSR0340P2T5G is a Schottky Barrier Diode optimized for very low forward voltage drop, low leakage current and used in a wide range of DC-DC converter, clamping and protection applications in portable devices. This SOD-923 miniature package enables designers to meet the challenging task of achieving higher efficiency and meeting reduced space requirements. It is used in LCD and keypad backlighting, camera photo flash, buck and boost DC-DC converter, reverse voltage and current protection, mobile handsets, mp3 players, digital camera and camcorders, notebook PCs & PDAs and GPS.
420mV at 100mA Very low forward voltage drop
0.6uA at 10V Low reverse current VR
Power dissipation of 190mW with minimum trace
3.0ns at 10mA Very high switching speed
4pF at 5.0V Low capacitance CT
AEC Qualified
Pb-free, halogen free

Show

NSR0340P2T5G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-923
Number of Positions	2 Position
Forward Voltage	560mV @200mA
Power Dissipation	190 mW
Thermal Resistance	520℃/W (RθJA)
Reverse recovery time	3 ns
Forward Current	200 mA
Max Forward Surge Current (Ifsm)	1 A
Maximum Forward Voltage (Max)	560 mV
Forward Current (Max)	200 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
	Show
Size-Length	0.85 mm
Size-Width	0.65 mm
Size-Height	0.4 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
