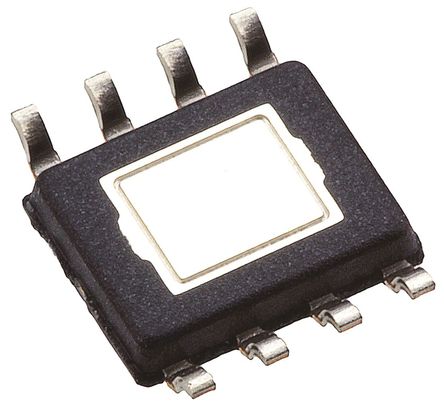

Image is for your reference only,please check specifications for details

OPA454AIDDA - TI
Manufacturer:
TI
ManyChip's Part#:
MC2166837
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
Operational Amplifier, Single, 1 Amplifier, 2.5MHz, 13V/µs, ± 5V to ± 50V, SOIC, 8Pins
Stock Locations:
Availability:
315 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.62

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The OPA454AIDDA is an Operational Amplifier IC with high voltage (100V) and relatively high current drive (50mA). It is unity-gain stable and has a gain-bandwidth product of 2.5MHz. It is internally protected against over-temperature conditions and current overloads. It is fully specified to perform over a wide power-supply range of ±5V to ±50V or on a single supply of 10 to 100V. The status flag is an open-drain output that allows it to be easily referenced to standard low-voltage logic circuitry. This high-voltage op amp provides excellent accuracy, wide output swing and is free from phase inversion problems that are often found in similar amplifiers.
IO >±50mA High Output Load Drive
1V to Rails Wide Output Voltage Swing
Independent Output Disable or Shutdown
Green Product, No Sb/Br
ESD sensitive device, take proper precaution while handling the device, ESD damage can range from subtle performance degradation to complete device failure.

Show

OPA454AIDDA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Supply Current	3.2 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	100 dB
Input Offset Drift	1.60 µV/K
Bandwidth	2.5 MHz
Slew Rate	13.0 V/μs
Gain Bandwidth Product	2.5 MHz
Input Offset Voltage	200 µV
Input Bias Current	1.4 pA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Gain Bandwidth	2.5 MHz
Supply Voltage (Max)	100 V
Supply Voltage (Min)	10 V
	Show
Size-Length	4.89 mm
Size-Width	3.9 mm
Size-Height	1.48 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
