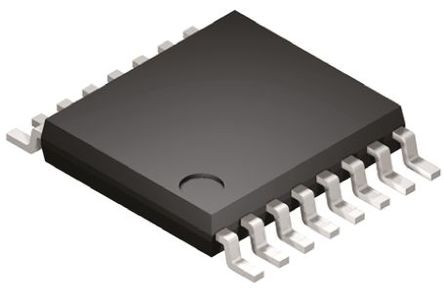

Image is for your reference only,please check specifications for details

PCM1771PW - TI
Manufacturer:
TI
ManyChip's Part#:
MC10273700
Category:
Digital to Analog, DAC IC
Package:
TSSOP-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS PCM1771PW Digital to Analog Converter, 24Bit, 50KSPS, Serial, 1.6V to 3.6V, TSSOP, 16Pins
Stock Locations:
Availability:
224 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.61

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PCM1770 and PCM1771 devices are CMOS, monolithic, integrated circuits which include stereo digital-to-analog converters, headphone circuitry, and support circuitry in small TSSOP-16 and VQFN-20 packages.
The data converters use TI"s enhanced multilevel architecture, which employs noise shaping and multilevel amplitude quantization to achieve excellent dynamic performance and improved tolerance to clock jitter. The PCM1770 and PCM1771 devices accept several industry standard audio data formats with 16- to 24-bit data, left-justified, I2S, etc., providing easy interfacing to audio DSP and decoder devices. Sampling rates up to 50 kHz are supported. A full set of user-programmable functions is accessible through a 3-wire serial control port, which supports register write functions.

Show

PCM1771PW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Number of Outputs	2 Output
Supply Current	1.50 mA
Number of Channels	1 Channel
Number of Bits	24 Bit
Power Dissipation	0.012 W
Sample Rate	50 ksps
Power Consumption	6.50 mW
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	12 mW
Supply Voltage	1.6V ~ 3.6V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
