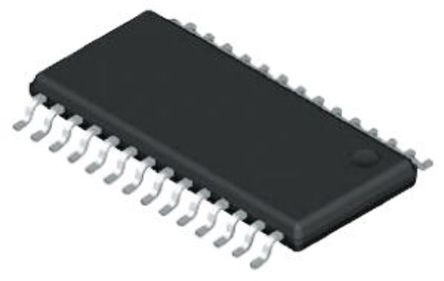

Image is for your reference only,please check specifications for details
- PCM1804DB - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC10574857
-
Category:Analog to Digital, ADC IC
-
Package:SSOP-28
-
Datasheet:Datasheet 3D Model
-
Description:Analog to Digital Converter, 24Bit, 192KSPS, Single, 4.75V, 5.25V, SSOP
-
Stock Locations:
-
Availability:77 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 7.17
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The PCM1804 is a high-performance, single-chip stereo A/D converter with fully differential analog voltage input. The PCM1804 uses a precision delta-sigma modulator and includes a linear phase antialias digital filter and high-pass filter (HPF) that removes dc offset from the input signal. The PCM1804 is suitable for a wide variety of mid- to high-grade consumer and professional applications, where excellent performance and 5-V analog supply and 3.3-V digital power-supply operation are required. The PCM1804 can achieve both PCM audio and DSD format due to the precision delta-sigma modulator. The PCM1804 is fabricated using an advanced CMOS process and is available in a small 28-pin SSOP package.
PCM1804DB Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 28 Pin |
| Case/Package | SSOP-28 |
| Supply Voltage (DC) | 4.75V (min) |
| Operating Voltage | 3.3V ~ 5V |
| Supply Current | 35.0 mA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Number of Bits | 24 Bit |
| Power Dissipation | 265 mW |
| Sample Rate | 192 ksps |
| Power Consumption | 265 mW |
| Number of ADCs | 2 ADC |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | -10 ℃ |
| Power Dissipation (Max) | 290 mW |
| Number of Input Channels | 2 Channel |
| Supply Voltage (Max) | 5.25 V |
| Supply Voltage (Min) | 4.75 V |
| Input Voltage | 5 V |
| Show | |
| Size-Length | 10.2 mm |
| Size-Width | 5.3 mm |
| Size-Height | 1.95 mm |
| Operating Temperature | -10℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
