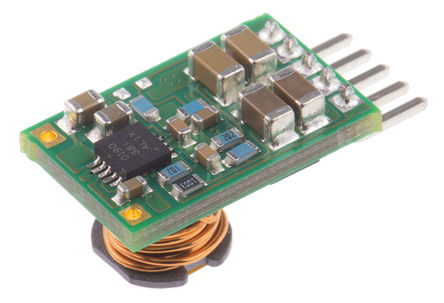

Image is for your reference only,please check specifications for details
- PTR08060WVD - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC4034296
-
Category:DC to DC Converter, DC/DC Converter
-
Package:SIP-5
-
Datasheet:Datasheet 3D Model
-
Description:Non Isolated POL DC-DC Converter, 33W, 600mV, 5.5V, 6A, Adjustable, SIP
-
Stock Locations:
-
Availability:63 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 33.91
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The PTR08060WVD is a Non-isolated Adjustable Switching Regulator with wide output voltage and wide input voltage range. The 6A converter provides output current at a much higher efficiency and with much less power dissipation, thereby eliminating the need for a heat sink. Using state-of-the-art switched-mode power-conversion technology, the output voltage can be stepped-down. The output voltage can be adjusted to any voltage over the range, 0.6 to 5.5V, using a single external resistor. It is well suited to a wide variety of general-purpose applications.
- Efficiency up to 96%
- On/off inhibit
- Under-voltage lockout (UVLO)
- Output current protection
- -40 to +85°C Operating temperature range
PTR08060WVD Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 5 Pin |
| Case/Package | SIP-5 |
| Supply Voltage (DC) | 12.0 V |
| Power Rating | 33 W |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 4.50V ~ 14.0V |
| Output Voltage | 0.6V ~ 5.5V |
| Output Current | 6 A |
| Number of Regulated Outputs | 1 Output |
| Topology | Buck |
| Input Voltage (Max) | 14 V |
| Input Voltage (Min) | 4.5 V |
| Input Voltage (DC Max) | 14 V |
| Input Voltage (DC Min) | 4.5 v |
| Output Voltage (Max) | 5.5 V |
| Output Voltage (Min) | 600 mV |
| Output Current (Max) | 6 A |
| Input Power (Max) | 33 W |
| Input Power (Max) | 33 W |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 4.5V ~ 14V |
| Show | |
| Size-Length | 16.51 mm |
| Size-Width | 9.42 mm |
| Size-Height | 16.51 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
