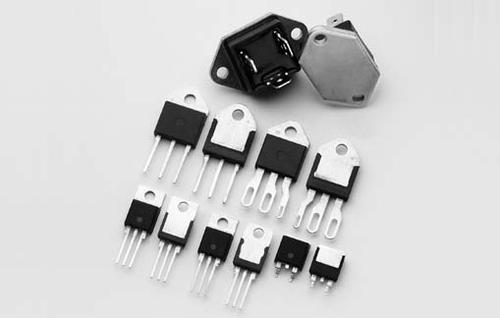

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Q6025L6 is a 3-pin standard isolated TRIAC with tin-plated terminals and epoxy body. The Qxx25xx-series bi-directional solid state switch is designed for AC switching and phase control applications. The internally constructed isolated package is offered for ease of heat sinking with highest isolation voltage.
Glass-passivated junctions
250A Surge capability

Show

Q6025L6 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	600 V
Current Rating	25.0 A
Number of Positions	3 Position
Holding Current	100 mA
Holding Current (Max)	100 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	Show
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
