Description

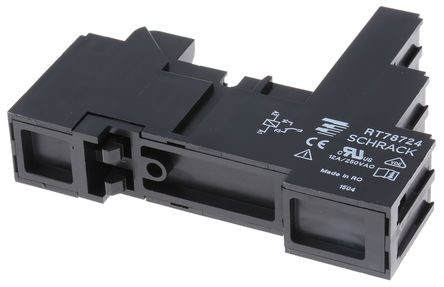

The RT78724 is a Socket with screw-type terminals, 240V/12A rated, pinning 3.5mm for DIN rail mounting, logical terminal arrangement used with RT industrial power relays.
IP20 Protection rating

Show

RT78724 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	DIN Rail, Screw
Number of Contacts	5 Contact
Voltage Rating (DC)	240 V
Voltage Rating (AC)	240 V
Current Rating	12 A
Current Rating (Max)	16A/触头
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	240 VAC
Voltage Rating	240 V
	Show
Size-Length	77.0 mm
Size-Width	15.5 mm
Size-Height	70 mm
Operating Temperature	-40℃ ~ 70℃
Product Lifecycle Status	Unknown
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
HTS Code	8536699099
ECCN Code	EAR99
