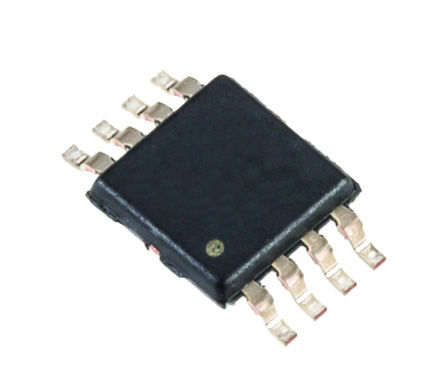

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SN74AUC1G74DCUR is a single positive-edge-triggered D-type Flip-flop with clear and preset. A low level at the preset (PRE\\) or clear (CLR\\) input sets or resets the outputs, regardless of the levels of the other inputs. When PRE\ and CLR\ are inactive (high), data at the data (D) input meeting the setup time requirements is transferred to the outputs on the positive-going edge of the clock pulse. Clock triggering occurs at a voltage level and is not related directly to the rise time of the clock pulse. Following the hold-time interval, data at the D input can be changed without affecting the levels at the outputs. To better optimize the flip-flop for higher frequencies, the CLR\ input overrides the PRE\ input when they are both low. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Ioff Supports partial-power-down mode operation
Latch-up performance exceeds 100mA per JESD 78, Class II
Sub-1-V Operable
Maximum tpd of 1.5ns at 1.8V
10µA Maximum low power consumption
±8mA Output drive at 1.8V
Green product and no Sb/Br

Show

SN74AUC1G74DCUR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Frequency	275 MHz
Supply Voltage (DC)	2.70 V, 2.70 V (max)
Number of Outputs	1 Output
Output Current	9 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Clock Speed	275 MHz
Number of Bits	1 Bit
Propagation Delay Max (tpd)	1.20 ns
Polarity	Non-Inverting, Inverting
Input Capacitance	2.5 pF
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	0.8V ~ 2.7V
Supply Voltage (Max)	2.7 V
Supply Voltage (Min)	0.8 V
	Show
Size-Length	2.3 mm
Size-Width	2 mm
Size-Height	0.85 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
