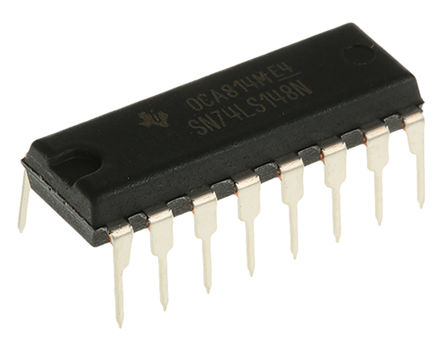

Image is for your reference only,please check specifications for details

SN74LS148N - TI
Manufacturer:
TI
ManyChip's Part#:
MC7004642
Category:
Logic Controller, Logic IC
Package:
DIP-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS SN74LS148N Priority Encoder, LS Family, 5 Output, 8mA, 4.75V to 5.25V, DIP-16
Stock Locations:
Availability:
114 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.6

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SN74LS148N is a 8-to-3 Priority Encoder features priority decoding of the inputs to ensure that only the highest-order data line is encoded. The LS147 encode nine data lines to four-line (8-4-2-1) BCD. The implied decimal zero condition requires no input condition as zero is encoded when all nine data lines are at a high logic level. Cascading circuitry (enable input E1 and enable output E0) has been provided to allow octal expansion without the need for external circuitry. For all types, data inputs and outputs are active at the low logic level.

Show

SN74LS148N Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP-16
Supply Voltage (DC)	4.75V (min)
Number of Outputs	5 Output
Number of Circuits	1 Circuit
Number of Positions	16 Position
Number of Bits	8 Bit
Power Dissipation	60 mW
Bandwidth	35.0 MHz
Output Current (Max)	8 mA
Number of Inputs	8 Input
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	60 mW
Supply Voltage	4.75V ~ 5.25V
Supply Voltage (Max)	5.25 V
Supply Voltage (Min)	4.75 V
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	0℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
