Image is for your reference only,please check specifications for details
- SSM2135S - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC37358934
-
Category:Operational Amplifier, OP Amp IC
-

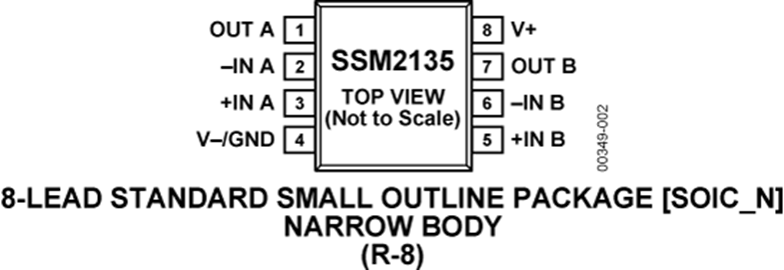

Package:SOIC-8
-
Datasheet:Datasheet 3D Model
-
Description:OP Amp Dual GP ±18V/36V 8Pin SOIC OP Amp Dual GP ±18V/36V 8Pin SOIC
-
Stock Locations:
-
Availability:9,662 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 5.53
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- GENERAL DESCRIPTION
- The SSM2135 dual audio operational amplifier permits excellent performance in portable or low power audio systems, with an operating supply range of 4 V to 36 V or ±2 V to ±18 V.
- The unity-gain stable device has very low voltage noise of 5.2 nV/√Hz, and total harmonic distortion plus noise below 0.01% over normal signal levels and loads. Such characteristics are enhanced by wide output swing and load drive capability.
- FEATURES
- Excellent sonic characteristics
- High output drive capability
- 5.2 nV/√Hz equivalent input noise @ 1 kHz
- 0.003% THD + N (VOUT = 1 V p-p @ 1 kHz)
- 3.5 MHz gain bandwidth
- Unity-gain stable
- Low cost
- APPLICATIONS
- Multimedia audio systems
- Microphone preamplifiers
- Headphone drivers
- Differential line receivers
- Balanced line drivers
- Audio ADC input buffers
- Audio DAC l-V converters and filters
- Pseudoground generators
SSM2135S Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Supply Current | 3.7 mA |
| Number of Circuits | 1 Circuit |
| Number of Channels | 2 Channel |
| Common Mode Rejection Ratio | 87 dB |
| Slew Rate | 900 mV/μs |
| Gain Bandwidth Product | 3.5 MHz |
| Input Offset Voltage | 200 µV |
| Input Bias Current | 300 nA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 3.5 MHz |
| Minimum CMRR Range | 87 dB |
| Supply Voltage (Max) | 36 V |
| Supply Voltage (Min) | 4 V |
| Show | |
| Size-Width | 4 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| Mil-Spec | No |
| HK STC License | NLR |
