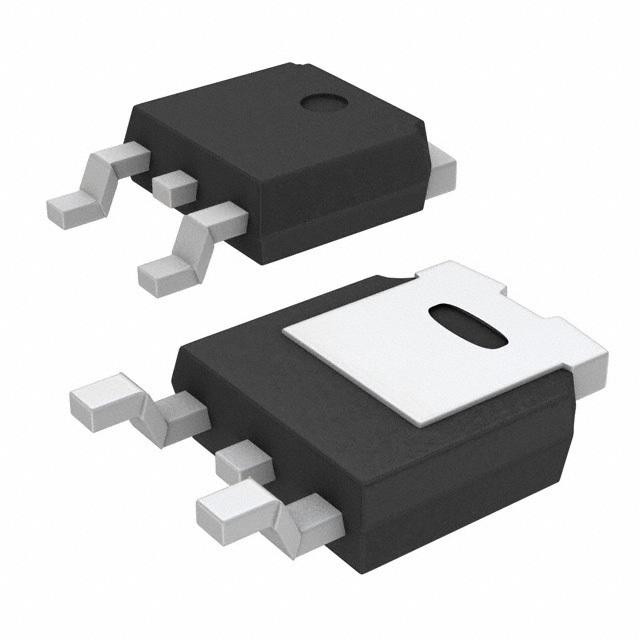

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STD30NF03LT4 is a STripFET™ II N-channel Power MOSFET developed using STMicroelectronics unique Single Feature Size™ strip-based process. The device has extremely high packing density for low ON-resistance, rugged avalanche characteristics and less critical alignment steps therefore a remarkable manufacturing reproducibility.
Low threshold drive
-65 to 175°C Operating junction temperature range

Show

STD30NF03LT4 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Voltage Rating (DC)	30.0 V
Current Rating	30.0 A
Power Rating	50 W
Number of Channels	1 Channel
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	0.02 Ω
Polarity	N-Channel
Power Dissipation	50 W
Threshold Voltage	1.7 V
Drain to Source Voltage (Vds)	30 V
Breakdown Voltage (Drain to Source)	30.0 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	30.0 A
Rise Time	205 ns
Input Capacitance (Ciss)	830pF @25V(Vds)
Input Power (Max)	50 W
Fall Time	240 ns
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	50W (Tc)
	Show
Operating Temperature	-65℃ ~ 175℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
