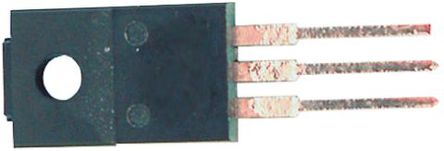

Image is for your reference only,please check specifications for details

STFW4N150 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC4824038
Category:
MOSFET, MOSFET Transistor
Package:
TO-3-3
Datasheet:
Datasheet 3D Model
Description:
N-channel 1500V - 5Ω - 4A - PowerMESH™ Power MOSFET TO-220 - TO-220FH - TO-247 - TO-3pF
Stock Locations:
Availability:
1,137 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.63

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STFW4N150 is a 1500V N-channel Power MOSFET developed using the well consolidated high voltage MESH OVERLAY™ process. The strengthened layout coupled with the proprietary edge termination structure gives the lowest RDS (on) per area, unrivalled gate charge and switching characteristics. Improved gate charge and lower power dissipation to meet today"s challenging efficiency requirements.
100% Avalanche tested
Intrinsic capacitances and Qg minimized
High speed switching
High peak power
High ruggedness capability

Show

STFW4N150 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-3-3
Number of Positions	3 Position
Drain to Source Resistance (on) (Rds)	5 Ω
Polarity	N-Channel
Power Dissipation	63 W
Threshold Voltage	4 V
Drain to Source Voltage (Vds)	1.5 kV
Rise Time	30 ns
Input Capacitance (Ciss)	1300pF @25V(Vds)
Input Power (Max)	63 W
Fall Time	45 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	63W (Tc)
	Show
Size-Length	15.7 mm
Size-Width	5.7 mm
Size-Height	26.7 mm
Operating Temperature	150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
