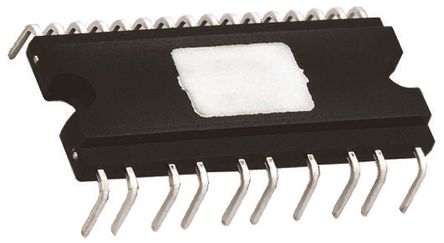

STGIPL14K60 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC25200296
Category:
IGBT Transistor, IGBT Module
Package:
SDIP-38
Datasheet:
Datasheet 3D Model
Description:
STGIPL14K60 Series 600V 15A 3 Phase IGBT Inverter Bridge Through Hole-SDIP-38L
Stock Locations:
Availability:
132 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 12.1

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STGIPL14K60 is a 600V SLLIMM™ Intelligent Power Module provides a compact, high performance AC motor drive in a simple and rugged design. Combining ST proprietary control ICs with the most advanced short-circuit-rugged IGBT system technology. This SLLIMM™ (small low-loss intelligent moulded module) device is ideal for 3-phase inverters in applications such as home appliances and air conditioners.
IPM 15A/600V 3-phase IGBT inverter bridge including control ICs for gate driving/freewheeling diodes
Short-circuit rugged IGBTs
VCE (sat) negative temperature coefficient
3.3, 5, 15V CMOS/TTL inputs comparators with hysteresis and pull down/pull up resistors
Undervoltage lockout
Internal bootstrap diode
Interlocking function
Smart shut down function
Comparators for fault protection against over-temperature and over-current
Op amps for advanced current sensing
DBC substrate leading to low thermal resistance
2500Vrms/min Isolation rating
5kR NTC for temperature control

Show

STGIPL14K60 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	38 Pin
Case/Package	SDIP-38
Number of Positions	38 Position
Polarity	N-Channel
Power Dissipation	44 W
Isolation Voltage	2500 VDC
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	44 W
	Show
Size-Length	50.1 mm
Size-Width	25 mm
Size-Height	6 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
