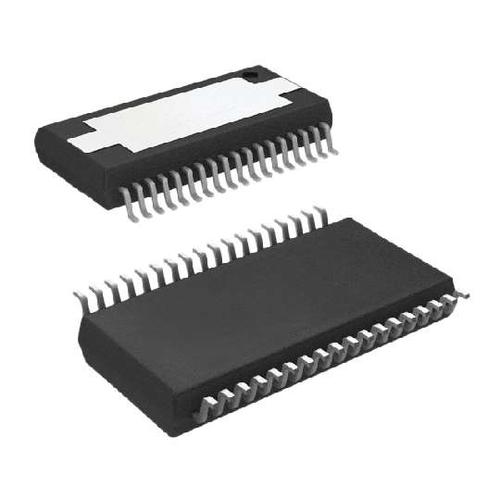

Image is for your reference only,please check specifications for details

TAS5162DKD - TI
Manufacturer:
TI
ManyChip's Part#:
MC13280604
Category:
Audio Amplifier IC
Package:
HSSOP-36
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TAS5162DKD Audio Power Amplifier, D, 2Channel, 210W, 0V to 52.5V, 10.8V to 13.2V, HSSOP, 36Pins
Stock Locations:
Availability:
275 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 14.94

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The TAS5162 is a high performance, integrated stereo digital amplifier power stage with an improved protection system. The TAS5162 is capable of driving a 6-Ω bridge-tied load (BTL) at up to 210 W per channel at THD = 10%, low integrated noise at the output, low THD+N performance without clipping, and low idle power dissipation.
FEATURES
• 2×160 W at 10% THD+N Into 8-Ω BTL
• 2×210 W at 10% THD+N Into 6-Ω BTL
• 1×300 W at 10% THD+N Into 4-Ω PBTL
• >110 dB SNR (A-Weighted, TAS5518 Modulator)
• <0.09% THD+N at 1 W
• Two Thermally Enhanced Package Options:
– DKD (36-pin PSOP3)
– DDV (44-pin HTSSOP)
• High-Efficiency Power Stage (>90%) With 80-mΩ Output MOSFETs
• Power-On Reset for Protection on Power Up Without Any Power-Supply Sequencing
• Integrated Self-Protection Circuits Including Undervoltage, Overtemperature, Overload, Short Circuit
• Error Reporting
• EMI Compliant When Used With Recommended System Design
• Intelligent Gate Drive
• Mid-Z Ramp Compatible for reduced "pop noise"
APPLICATIONS
• Mini/Micro Audio System
• DVD Receiver
• Home Theater

Show

TAS5162DKD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	36 Pin
Case/Package	HSSOP-36
Number of Channels	2 Channel
Power Dissipation	2500 mW
Quiescent Current	10.0 mA
Output Power	210 W
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	2500 mW
Supply Voltage	10.8V ~ 13.2V
	Show
Size-Length	14.5 mm
Size-Width	16 mm
Size-Height	3.3 mm
Operating Temperature	0℃ ~ 70℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
