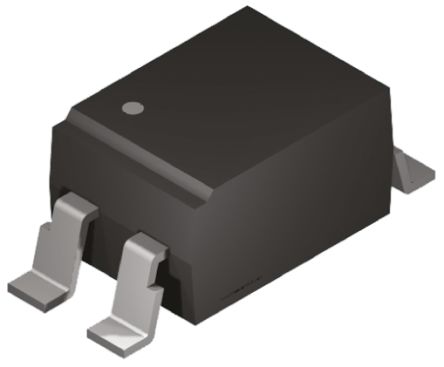

- TCLT1000 - VISHAY
-
Manufacturer:VISHAY
-
ManyChip's Part#:MC11550500
-
Category:Optocoupler, Optoisolator
-
Package:SOP-4
-
Datasheet:Datasheet 3D Model
-
Description:TCLT1000 Series Single Channel 70V 5000Vrms Phototransistor Optocoupler - SOP-4L
-
Stock Locations:
-
Availability:44 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.19
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TCLT1000 is a 1-channel 4-pin Phototransistor Output Optocoupler consists of a phototransistor optically coupled to a gallium arsenide infrared-emitting diode. It is suitable for switch-mode power supplies and microprocessor system interface.
- Extra low coupling capacitance
- DC input with transistor output
- >8mm Creepage distance
- 6V Reverse voltage
- 60mA Forward current
- -55 to +100°C Operating ambient temperature range
- 1050V VIORM
TCLT1000 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 4 Pin |
| Case/Package | SOP-4 |
| Voltage Rating (DC) | 70.0 V |
| Rise/Fall Time | 3μs, 4.7μs |
| Output Voltage | 70 V |
| Number of Channels | 1 Channel |
| Number of Positions | 4 Position |
| Forward Voltage | 1.25 V |
| Input Current | 50 mA |
| Power Dissipation | 0.25 W |
| Rise Time | 3 µs |
| Isolation Voltage | 5000 Vrms |
| Forward Current | 60 mA |
| Output Voltage (Max) | 70 V |
| Input Current (Min) | 60 mA |
| Reverse Breakdown Voltage | 6 V |
| Maximum Forward Voltage (Max) | 1.6 V |
| Forward Current (Max) | 60 mA |
| Fall Time | 4.7 µs |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 250 mW |
| Show | |
| Operating Temperature | -55℃ ~ 100℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
