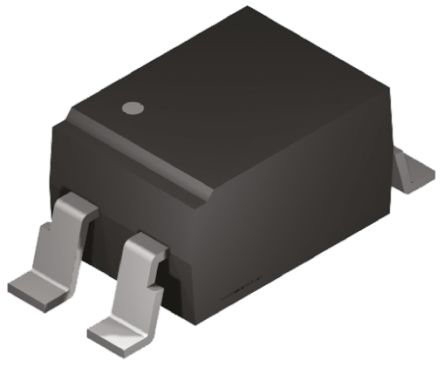

TCLT1008 - VISHAY
Manufacturer:
VISHAY
ManyChip's Part#:
MC5538685
Category:
Optocoupler, Optoisolator
Package:
SOP-4
Datasheet:
Datasheet 3D Model
Description:
TCLT100 Series Single Channel 70V 5000Vrms Phototransistor Optocoupler - SOP-4
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

TCLT100 Series Single Channel 70 V 5000 Vrms Phototransistor Optocoupler - SOP-4

Show

TCLT1008 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOP-4
Voltage Rating (DC)	70.0 V
Power Rating	0.25 W
Rise/Fall Time	3μs, 4.7μs
Output Voltage	70 V
Number of Channels	1 Channel
Number of Positions	4 Position
Forward Voltage	1.25 V
Input Current	50 mA
Power Dissipation	250 mW
Rise Time	3 µs
Isolation Voltage	5 kV
Forward Current	60 mA
Output Voltage (Max)	70 V
Input Current (Min)	60 mA
Reverse Breakdown Voltage	6 V
Maximum Forward Voltage (Max)	1.6 V
Forward Current (Max)	60 mA
Fall Time	4.7 µs
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	250 mW
	Show
Size-Length	4.1 mm
Size-Width	7.5 mm
Size-Height	2 mm
Operating Temperature	-55℃ ~ 100℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
HK STC License	NLR
