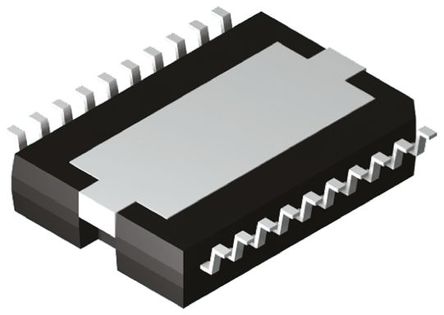

Image is for your reference only,please check specifications for details

TDA7266D - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC29090440
Category:
Audio Amplifier IC
Package:
PowerSO-20
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS TDA7266D Audio Power Amplifier, 2Channel, 5W, 3.5V to 12V, PowerSO, 20Pins
Stock Locations:
Availability:
245 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.98

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Never have an aliasing frequency with this TDA7266D class D amplifier from STMicroelectronics. Its maximum power dissipation is 25000 mW. It has a single input signal and a differential output signal. It has a maximum load resistance of 8 Ohm. It has a 2-channel stereo output. This audio amplifier has a minimum operating temperature of 0 °C and a maximum of 70 °C. This device uses a single power supply. Its typical PSRR is 56 dB.

Show

TDA7266D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	PowerSO-20
Number of Circuits	1 Circuit
Number of Channels	2 Channel
Power Dissipation	25000 mW
Quiescent Current	50.0 mA
Output Power	5 W
Gain	26 dB
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	25000 mW
Supply Voltage	3.5V ~ 12V
Supply Voltage (Max)	12 V
Supply Voltage (Min)	3.5 V
	Show
Size-Length	16 mm
Size-Width	11.1 mm
Size-Height	3.3 mm
Operating Temperature	0℃ ~ 70℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
