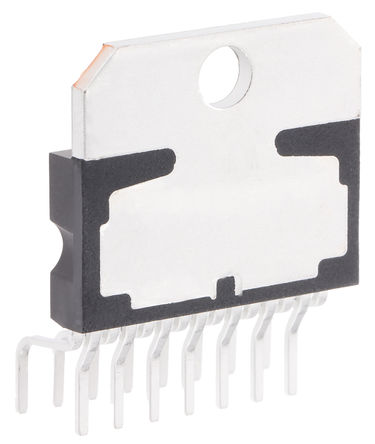

Image is for your reference only,please check specifications for details

TDA7297 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC102776
Category:
Audio Amplifier IC
Package:
Multiwatt-15
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS TDA7297 Audio Power Amplifier, AB, 2Channel, 15W, 6.5V to 18V, Multiwatt, 15Pins
Stock Locations:
Availability:
618 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.79

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

TDA7297 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	15 Pin
Case/Package	Multiwatt-15
Supply Voltage (DC)	20.0 V
Output Current	2 A
Supply Current	2.00 A
Number of Circuits	1 Circuit
Number of Channels	2 Channel
Number of Positions	15 Position
Power Dissipation	33 W
Quiescent Current	50.0 mA
Output Power	15 W
Gain	32 dB
Output Current (Max)	2000 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	33000 mW
Supply Voltage	6.5V ~ 18V
	Show
Size-Length	19.6 mm
Size-Width	5 mm
Size-Height	10.7 mm
Operating Temperature	0℃ ~ 70℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
