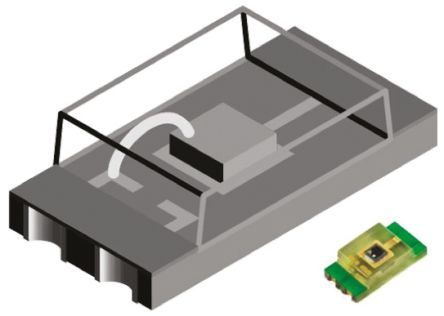

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TEMT6000X01 is an Ambient Light Sensor features floor life of 168h, MSL 3, according to J-STD-020. It is a silicon NPN epitaxial planar phototransistor. It is sensitive to visible light much like the human eye and has peak sensitivity at 570nm.
High photo sensitivity
AEC-Q101 qualified
±60° Angle of half sensitivity

Show

TEMT6000X01 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SMD
Number of Channels	1 Channel
Number of Positions	3 Position
Wavelength	570 nm
Viewing Angle	60°
Peak Wavelength	570 nm
Polarity	NPN
Power Dissipation	0.1 W
Power Consumption	100 mW
Breakdown Voltage (Collector to Emitter)	6.00 V
	Show
Size-Length	4 mm
Size-Width	2 mm
Size-Height	1.05 mm
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
ECCN Code	EAR99
