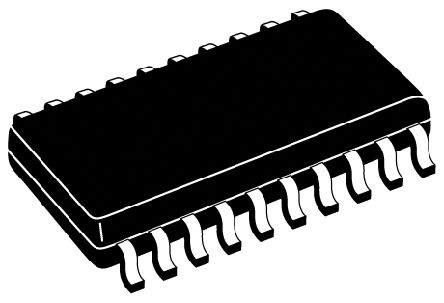

Image is for your reference only,please check specifications for details

TLE6209R - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC6719240
Category:
Motor Driver
Package:
PG-DSO-20
Datasheet:
Datasheet 3D Model
Description:
INFINEON TLE6209R Motor Driver, Dual, Half Bridge, 8V to 40V supply, 6A/2Outputs, SOIC-20
Stock Locations:
Availability:
684 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.15

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLE6209R is an integrated Power H-Bridge with D-MOS output stages for driving bidirectional loads such as DC-motors. The design is based on Smart Power Technology® (SPT) which allows bi-polar, CMOS and power D-MOS devices on the same monolithic circuit. Operation modes forward (cw), reverse (ccw) and brake are invoked by two control pins PWM and DIR. Protection and a reliable diagnosis of over-current, open load, short-circuit to ground, to the supply voltage or across the load are integrated. Detailed diagnostic information is given via the 8-bit SPI status word. An integrated chopper current limitation limits the current to reduce power dissipation during mechanical block of a DC motor. Several device parameters can be set by the SPI control word. A 3-level temperature monitoring with pre-warning, warning and shutdown is included for controlled operation under critical power loss conditions.
Outputs fully short-circuit protected
Over and under-voltage-lockout
Open load detection
Detailed load failure diagnosis by SPI
Minimized power dissipation due to active free-wheeling
Low EMI due to voltage slope regulation

Show

TLE6209R Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	PG-DSO-20
Supply Voltage (DC)	8.00V (min)
Number of Outputs	2 Output
Output Current	6 A
Number of Positions	20 Position
Switching Frequency	2 MHz
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	40 V
Supply Voltage (Min)	8 V
	Show
Size-Length	15.9 mm
Size-Width	11 mm
Size-Height	3.5 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
