Description
- description
- The TLV244x and TLV244xA are low-voltage operational amplifiers from Texas Instruments. The common-mode input voltage range of these devices has been extended over typical standard CMOS amplifiers, making them suitable for a wide range of applications. In addition, these devices do not phase invert when the common-mode input is driven to the supply rails. This satisfies most design requirements without paying a premium for rail-to-rail input performance. They also exhibit rail-to-rail output performance for increased dynamic range in single- or split-supply applications. This family is fully characterized at 3-V and 5-V supplies and is optimized for low-voltage operation. Both devices offer comparable ac performance while having lower noise, input offset voltage, and power dissipation than existing CMOS operational amplifiers. The TLV244x has increased output drive over previous rail-to-rail operational amplifiers and can drive 600-Ω loads for telecommunications applications.
- • Output Swing Includes Both Supply Rails
- • Extended Common-Mode Input Voltage Range . . . 0 V to 4.25 V (Min) at 5-V Single Supply
- • No Phase Inversion
- • Low Noise . . . 16 nV/√Hz Typ at f = 1 kHz
- • Low Input Offset Voltage 950 µV Max at TA = 25°C (TLV244xA)
- • Low Input Bias Current . . . 1 pA Typ
- • 600-Ω Output Drive
- • High-Gain Bandwidth . . . 1.8 MHz Typ
- • Low Supply Current . . . 750 µA Per Channel Typ
- • Macromodel Included
- • Available in Q-Temp Automotive
- HighRel Automotive Applications
- Configuration Control/Print Support
- Qualification to Automotive Standards

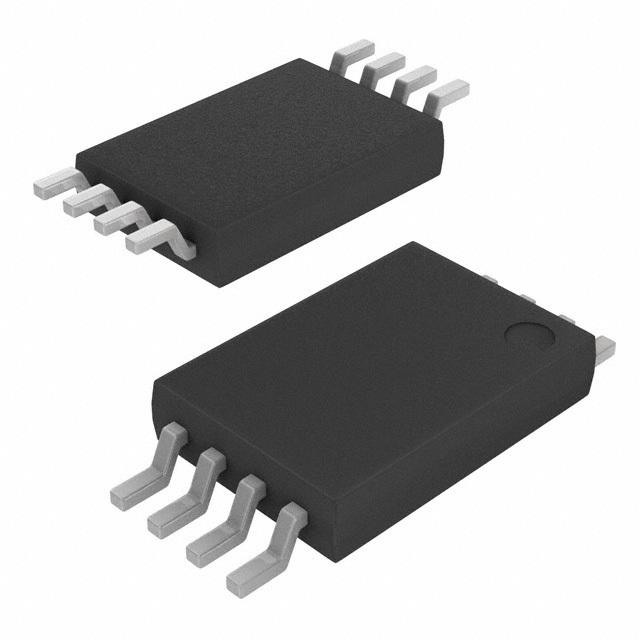

TLV2442CPW Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | TSSOP-8 |
| Output Current | 5 mA |
| Supply Current | 750 µA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Power Dissipation | 525 mW |
| Common Mode Rejection Ratio | 70 dB |
| Input Offset Drift | 2.00 µV/K |
| Bandwidth | 1.75 MHz |
| Slew Rate | 1.40 V/μs |
| Gain Bandwidth Product | 1.81 MHz |
| Input Offset Voltage | 300 µV |
| Input Bias Current | 1 pA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 525 mW |
| Minimum CMRR Range | 70 dB |
| Supply Voltage (Max) | 10 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 4.4 mm |
| Size-Height | 1.15 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
