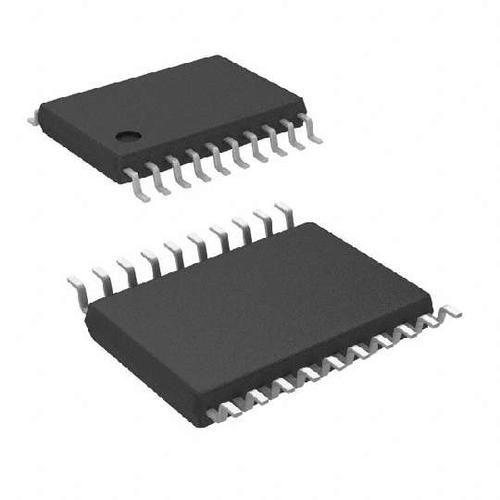

Image is for your reference only,please check specifications for details

TLV320AIC1106PW - TI
Manufacturer:
TI
ManyChip's Part#:
MC10974596
Category:
Interface IC, Interface Controller
Package:
TSSOP-20
Datasheet:
Datasheet 3D Model
Description:
PCM Codec With Microphone Amps & Speaker Driver 20-TSSOP -40℃ to 85℃
Stock Locations:
Availability:
256 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.49

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TLV320AIC1106 PCM codec is designed to perform transmit encoding analog-to-digital (A/D) conversion, receive decoding digital-to-analog (D/A) conversion, and transmit and receive filtering for voice-band communications systems. The TLV320AIC1106 device operates in either the 13-bit linear or 8-bit companded (u-law) mode. The PCM codec generates its own internal clocks from a 2.048-MHz master clock input.

Show

TLV320AIC1106PW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	TSSOP-20
Number of Channels	1 Channel
Number of Positions	20 Position
Number of Bits	13 Bit
Sample Rate	8 KSPS
Power Consumption	13.5 mW
Output Power	13.5 mW
Number of ADCs	1 ADC
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Number of Input Channels	1 Channel
Number of Output Channels	1 Channel
Number of DACs	1 DAC
Supply Voltage	2.7V ~ 3.3V
Supply Voltage (Max)	3.3 V
Supply Voltage (Min)	2.7 V
	Show
Size-Length	6.5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Weight	0.0012510078392 kg
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
