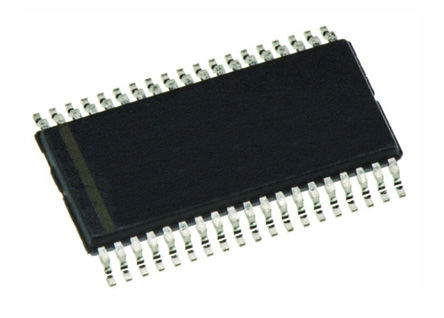

Image is for your reference only,please check specifications for details

TPD12S520DBTR - TI
Manufacturer:
TI
ManyChip's Part#:
MC3228696
Category:
Interface IC, Interface Controller
Package:
TSSOP-38
Datasheet:
Datasheet 3D Model
Description:
HDMI Receiver Port Protection and Interface Device 38-TSSOP -40℃ to 85℃
Stock Locations:
Availability:
868 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.62

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPD12S520DBTR is a HDMI Receiver Port Protection and Interface Device. It is a single-chip electrostatic discharge (ESD) circuit protection device for the high-definition multimedia interface (HDMI) receiver port. While providing ESD protection with transient voltage suppression (TVS) diodes, the TVS protection adds little or no additional glitch in the high-speed differential signals. The high-speed transition minimized differential signalling (TMDS) ESD protection lines add only 0.8pF capacitance. The low-speed control lines offer voltage-level shifting to eliminate the need for an external voltage level-shifter IC. The device offers a seamless layout routing option to eliminate the routing glitch for the differential signal pairs. The HDMI receiver port protection and interface device is designed specifically for HDMI receiver-interface protection.
Single-chip ESD solution for HDMI driver
12-channel ESD Protection diodes
Supports All HDMI 1.3 and HDMI 1.4 data rates (-3dB frequency >3GHz)
0.05pF Matching capacitance between the differential signal pair
Provides seamless layout option with HDMI connector
Back drive protection
-40 to 85°C Operating temperature range

Show

TPD12S520DBTR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	38 Pin
Case/Package	TSSOP-38
Supply Voltage (DC)	5.00V (min)
Operating Voltage	5.5 V
Capacitance	900 fF
Number of Channels	12 Channel
Number of Positions	38 Position
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	5 V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	5 V
	Show
Size-Length	9.7 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
