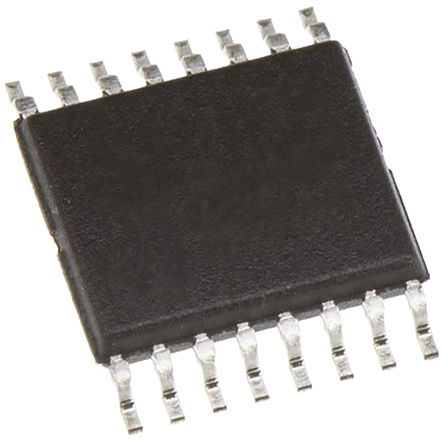

Image is for your reference only,please check specifications for details

Updated at 04/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS43000PW is a synchronous PWM Controller can be used in buck, boost, SEPIC, or flyback topologies. This highly flexible full-featured controller is designed to drive a pair of external MOSFETs (one N-channel and one P-channel), enabling it for use with a wide range of output voltages and power levels. With an automatic PFM mode, a shutdown current of less than 1uA, a sleep-mode current of less than 100uA and a full operating current of less than 2mA at 1MHz, it is ideal for building highly efficient, DC to DC converters. This high-frequency voltage-mode controller operates over a wide input voltage range of 1.8 to 9V. Typical power sources are distributed power systems, two to four nickel or alkaline batteries, or one to two lithium-ion cells. It can be used to generate regulated output voltages from as low as 0.8 to 8V or higher. It operates either in a fixed-frequency mode, where the user programs the frequency (up to 2MHz), or in an automatic PFM mode.
High-efficiency buck, boost, SEPIC or flyback (buck-boost) topology
Synchronous rectification for high-efficiency
Drives external MOSFETs for high-current applications
Synchronizable fixed-frequency
PWM or automatic pulsed frequency modulation (PFM) mode
Built-in soft-start
User programmable discontinuous or continuous conduction mode
Selectable pulse-by-pulse current limiting or hiccup mode protection
Green product and no Sb/Br

Show

TPS43000PW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	TSSOP-16
Frequency	2.00 MHz
Supply Voltage (DC)	1.80V (min)
Number of Outputs	1 Output
Input Voltage (DC)	3.50 V
Output Voltage	0.8V ~ 8V
Output Current	6 A
Number of Positions	16 Position
Input Current	1.00 mA
Quiescent Current	1.00 mA
Number of Regulated Outputs	1 Output
Rise Time	25 ns
Switching Frequency	2 MHz
Thermal Shutdown	No
Duty Cycle	100 %
Input Voltage (Max)	9 V
Input Voltage (Min)	1.8 V
Output Voltage (Max)	8 V
Output Voltage (Min)	0.8 V
Maximum Duty Cycle	90 %
Fall Time	20 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.8V ~ 9V
Supply Voltage (Max)	9 V
Supply Voltage (Min)	1.8 V
Input Voltage	1.8V ~ 9V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
