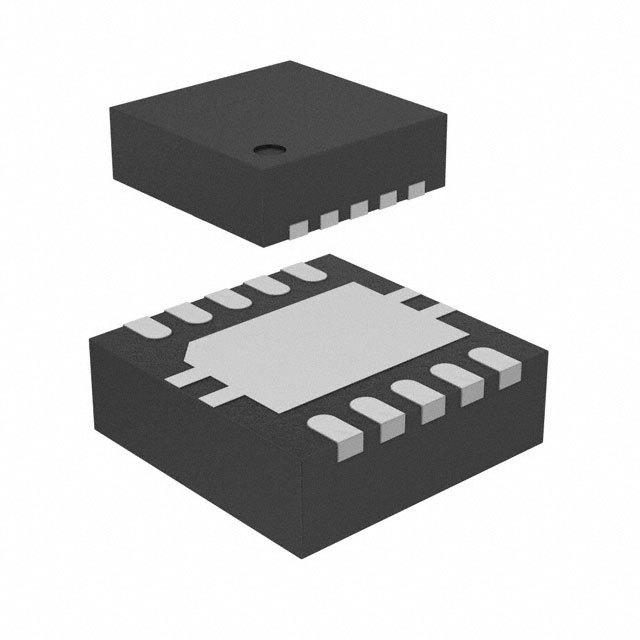

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- This LDO TPS51200DRCRG4 linear regulator from Texas Instruments acts like a variable resistor to maintain a steady voltage level. This voltage regulation device"s single output can produce a current up to 3 A. The best way to provide power to your application is by using this, which needs a voltage of at least 2.375 V and no higher than 3.5 V. With an adjustable output that has a voltage of -0.3 to 6 V, this is power management at its best. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This voltage regulation device has a minimum operating temperature of -40 °C and a maximum of 85 °C. Its polarity is negative and positive|positive.
TPS51200DRCRG4 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | VSON-10 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.6V ~ 1.25V |
| Output Current | 3 A |
| Input Current | 1 µA |
| Power Dissipation | 1.92 W |
| Quiescent Current | 500 µA |
| Output Capacitor Type | Ceramic |
| Number of Regulated Outputs | 1 Output |
| Input Voltage (Max) | 3.5 V |
| Input Voltage (Min) | 2.375 V |
| Output Current (Max) | 3 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1920 mW |
| Input Voltage | 2.38V ~ 3.5V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 0.9 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
