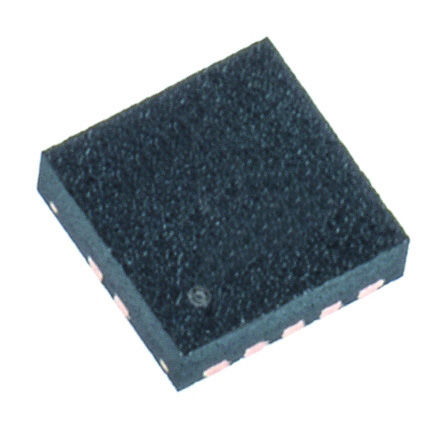

Image is for your reference only,please check specifications for details

TPS54160ADRCT - TI
Manufacturer:
TI
ManyChip's Part#:
MC26053270
Category:
DC to DC Converter
Package:
VFDFN-10
Datasheet:
Datasheet 3D Model
Description:
Conv DC-DC 3.5V to 60V Step Down Single-Out 0.8V to 58V 1.5A 10Pin VSON EP T/R
Stock Locations:
Availability:
251 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.78

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS54160ADRCT is a Step-down Regulator with an integrated high-side MOSFET. Current-mode control provides simple external compensation and flexible component selection. A low ripple pulse skip mode reduces the no load, regulated output supply current to 116µA. Using the enable pin, shutdown supply current is reduced to 1.3µA. Undervoltage lockout is internally set at 2.5V, but can be increased using the enable pin. The output voltage startup ramp is controlled by the slow start pin that can also be configured for sequencing/tracking. An open drain power good signal indicates the output is within 94 to 107% of its nominal voltage. A wide switching frequency range allows efficiency and external component size to be optimized. Frequency foldback and thermal shutdown protects the part during an overload condition.
High efficiency at light loads with a pulse skipping Eco-mode™
Adjustable UVLO voltage and hysteresis
Synchronizes to external clock
Adjustable slow start/sequencing
Undervoltage and overvoltage power-good output
Supported by WEBBENCH® and SwitcherPro™ software tool
200mR High-side MOSFET
0.8V Internal voltage reference
Green product and no Sb/Br

Show

TPS54160ADRCT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	VFDFN-10
Number of Outputs	1 Output
Output Voltage	0.8V ~ 58V
Output Current	1.5 A
Number of Positions	10 Position
Quiescent Current	116 µA
Number of Regulated Outputs	1 Output
Switching Frequency	2.5 MHz
Input Voltage (Max)	60 V
Input Voltage (Min)	3.5 V
Output Voltage (Max)	58 V
Output Voltage (Min)	800 mV
Output Current (Max)	1.5 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	3.5V ~ 60V
	Show
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
