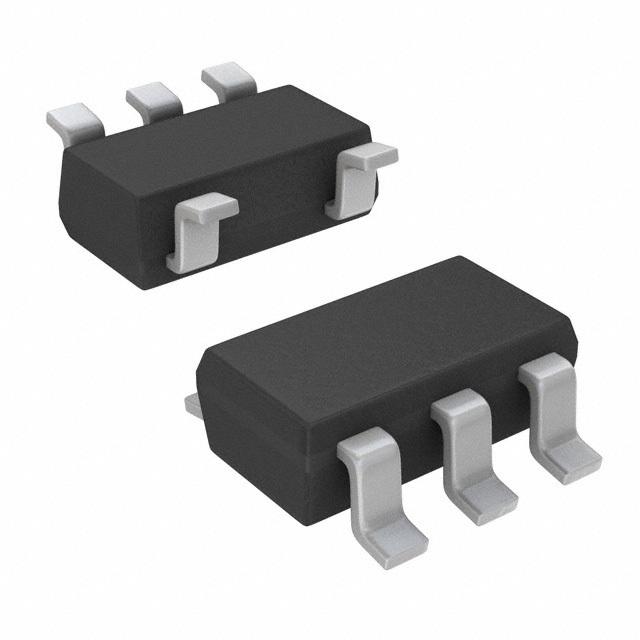

- TPS62561DDCR - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC27967763
-
Category:DC to DC Converter
-
Package:TSOT-23-5
-
Datasheet:Datasheet 3D Model
-
Description:Step-Down Regulator 2.25MHz 600mA Step-Down Converter in TSOT23 Package Conv DC-DC Single Step Down 2.5V to 5.5V 5Pin TSOT-23 T/R
-
Stock Locations:
-
Availability:1,651 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.86
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS62560 device is a high efficiency synchronous step down converter, optimized for battery powered portable applications. It provides up to 600-mA output current from batteries, such as single Li-Ion or other common chemistry AA and AAA cells.
- With an input voltage range of 2.5 V to 5.5 V, the device is targeted to power a large variety of portable handheld equipment or POL applications.
- The TPS62560 family operates at 2.25-MHz fixed switching frequency and enters a Power Save Mode operation at light load currents to maintain a high efficiency over the entire load current range.
- The Power Save Mode is optimized for low output voltage ripple. For low noise applications, the device can be forced into fixed frequency PWM mode by pulling the MODE pin high. In the shutdown mode the current consumption is reduced to less than 1 µA. The TPS62560 allows the use of small inductors and capacitors to achieve a small solution size.
- TPS62560 and TPS62562 are available in a 2-mm × 2-mm, 6-pin SON package, whereas the TPS62561 is available in a 5-pin SOT package.
TPS62561DDCR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | TSOT-23-5 |
| Number of Outputs | 1 Output |
| Output Voltage | 0.85V ~ 5.5V |
| Output Current | 600 mA |
| Quiescent Current | 15.0 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 2.25 MHz |
| Topology | Buck |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 2.5 V |
| Output Voltage (Max) | 5.5 V |
| Output Voltage (Min) | 0.85 V |
| Output Current (Max) | 0.6 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2.5V ~ 5.5V |
| Input Voltage | 2.5V ~ 5.5V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
