Description
- DESCRIPTION
- The TPS725xx family of 1-A low-dropout (LDO) linear regulators has fixed voltage options available that are commonly used to power the latest DSPs, FPGAs, and microcontrollers. An adjustable option ranging from 1.22 V to 5.5 V is also available. The integrated supervisory circuitry provides an active low RESET signal when the output falls out of regulation. The no
- capacitor/any capacitor feature allows the customer to tailor output transient performance as needed. Therefore, compared to other regulators capable of providing the same output current, this family of regulators can provide a stand-alone power supply solution or a post regulator for a switch mode power supply.
- FEATURES
- • 1-A Output Current
- • Available in 1.5-V, 1.6-V, 1.8-V, 2.5-V Fixed-Output and Adjustable Versions (1.2-V to 5.5-V)
- • Input Voltage Down to 1.8 V
- • Low 170-mV Dropout Voltage at 1 A(TPS72525)
- • Stable With Any Type/Value Output Capacitor
- • Integrated Supervisor (SVS) With 50-ms RESET Delay Time
- • Low 210-µA Ground Current at Full Load (TPS72525)
- • Less than 1-µA Standby Current
- • ±2% Output Voltage Tolerance Over Line, Load, and Temperature (-40°C to 125°C)

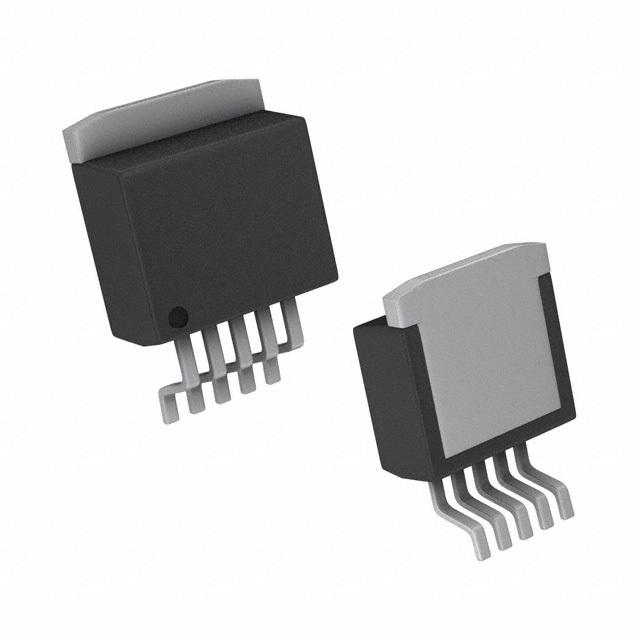

TPS72501KTTRG3 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | TO-263-6 |
| Number of Outputs | 1 Output |
| Output Voltage | 1.2V ~ 5V |
| Output Current | 1 A |
| Quiescent Current | 75.0 µA |
| Output Capacitor Type | Ceramic |
| voltage rating | 0.17V @1A |
| Number of Regulated Outputs | 1 Output |
| Input Voltage (Max) | 6 V |
| Input Voltage (Min) | 1.8 V |
| Output Current (Max) | 1 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Accuracy | ±2 % |
| Input Voltage | 1.8V ~ 6V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
