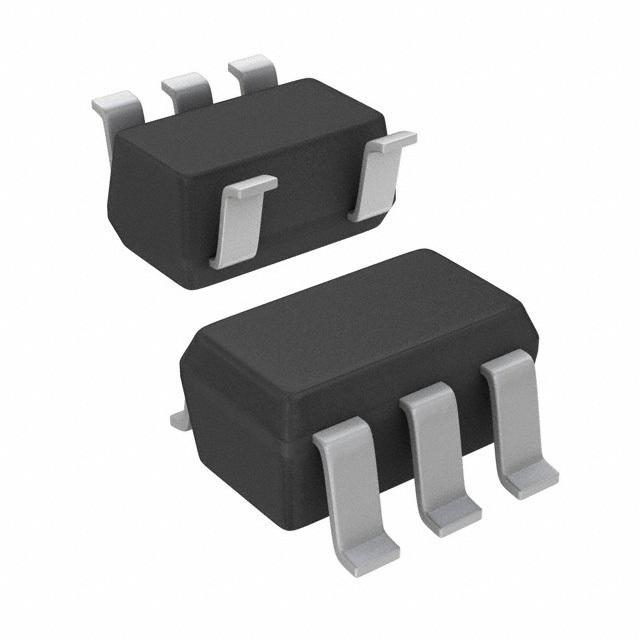

TPS76901HDBVT - TI
Manufacturer:
TI
ManyChip's Part#:
MC9104359
Category:
Voltage Regulator
Package:
SOT-23-5
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS76901HDBVT LDO Voltage Regulator, Adjustable, 5V to 10V in, 71mV drop, 1.2V to 4.5V/0.1A out, SOT-23-5
Stock Locations:
Availability:
252 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 51.08

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS76901HDBVT is a High Temperature 100mA Low-dropout Line Regulator that offers the benefit of ultralow-power operation. This regulator features low dropout voltage and ultralow quiescent current compared to conventional LDO regulators. The TPS76901 is ideal for micropower operations and where board space is at a premium. A combination of new circuit design and process innovation has enabled the usual PNP pass transistor to be replaced by a PMOS pass element. Because the PMOS pass element behaves as a low-value resistor, the dropout voltage is very low and is directly proportional to the load current. Since the PMOS pass element is a voltage-driven device, the quiescent current is ultralow (28µA maximum) and is stable over the entire range of output load current (0 to 100mA). Intended for use in portable systems such as laptops and cellular phones, the ultralow-dropout voltage feature and ultralow-power operation result in a significant increase in system battery operating life.
100mA Low-dropout regulator
Only 335µA quiescent current with 100mA at 210°C
1µA Quiescent current in standby mode
Dropout voltage typically 71mV at 100mA
Over-current limitation
Green product and no Sb/Br
IC can be damaged by ESD. We recommend that all ICs be handled with appropriate precautions. Failure to observe proper handling and installation procedures can cause damage.

Show

TPS76901HDBVT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-23-5
Number of Outputs	1 Output
Output Voltage	1.2V ~ 4.5V
Output Current	100 mA
Supply Current	28 µA
Number of Positions	5 Position
Quiescent Current	0.017 mA
Output Capacitor Type	Tantalum
voltage rating	0.071V @100mA
Number of Regulated Outputs	1 Output
Input Voltage (Max)	10 V
Input Voltage (Min)	5 V
Output Voltage (Max)	4.5 V
Output Voltage (Min)	1.2 V
Output Current (Max)	0.1 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Accuracy	±3 %
Input Voltage	5V ~ 10V
	Show
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
