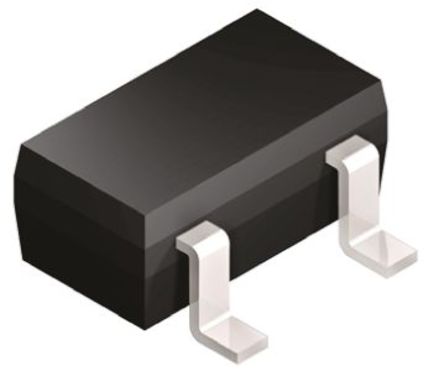

TS3431BILT - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC3848369
Category:
Voltage Reference
Package:
SOT-23-3
Datasheet:
Datasheet 3D Model
Description:
Shunt Voltage Reference IC 24V ±0.5% 100mA TO-236-3, SC-59, SOT-23-3
Stock Locations:
Availability:
2 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.48

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TS3431 is a programmable shunt voltage reference with guaranteed temperature stability over the entire operating temperature range (- 40 °C to + 125 °C). The output voltage can be set to any value between 1.24 V and 24 V with an external resistor bridge.
Available in SOT23-3 surface mount package, it can be used in application designs where space saving is critical.
**Key Features**
Adjustable output voltage: 1.24 to 24 V
Several precision levels @ 25°C ± 2%, ± 1%, ± 0.5% and ± 0.25%
Sink current capability: 0.4 to 100 mA
Industrial temperature range: - 40°C to +125°C
Performance compatible with industry standard TL431

Show

TS3431BILT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-23-3
Supply Voltage (DC)	36.0V (max)
Capacitance Tolerance	±0.5 %
Input Voltage (DC)	1.24V ~ 24.0V
Output Voltage	1.24V ~ 24V
Output Current	100 mA
Supply Current	100 mA
Number of Channels	1 Channel
Number of Positions	3 Position
Power Dissipation	360 mW
Input Voltage (Max)	25 V
Output Voltage (Max)	24 V
Output Voltage (Min)	1.24 V
Output Current (Max)	100 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±0.5 %
Input Voltage	25 V
	Show
Size-Length	3.04 mm
Size-Width	1.4 mm
Size-Height	1.02 mm
Operating Temperature	-40℃ ~ 125℃
Temperature Coefficient	±100 ppm/℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
