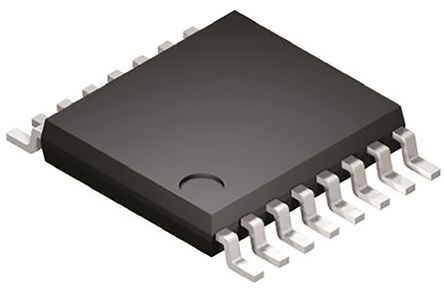

Image is for your reference only,please check specifications for details
- TS3A5017PW - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC37359034
-
Category:Analog Switch Ic, Analog Switch Multiplexer
-
Package:TSSOP-16
-
Datasheet:Datasheet 3D Model
-
Description:14Ω Dual SP4T Analog Switch 3.3V/2.5V Analog Multiplexer/Demultiplexer 16-TSSOP -40℃ to 85℃
-
Stock Locations:
-
Availability:242 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.72
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TS3A5017 device is a dual single-pole quadruple-throw (4:1) analog switch that is designed to operate from 2.3 V to 3.6 V. This device can handle both digital and analog signals, and signals up to V+ can be transmitted in either direction.
TS3A5017PW Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | TSSOP-16 |
| Number of Outputs | 8 Output |
| Supply Current | 2.5 µA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Propagation Delay Max (tpd) | 9.50 ns |
| Voltage Nodes | 2.50 V, 3.00 V, 3.30 V |
| Bandwidth | 165 MHz |
| Number of Inputs | 2 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 165 MHz |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 2.3 V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4.4 mm |
| Size-Height | 1.15 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
