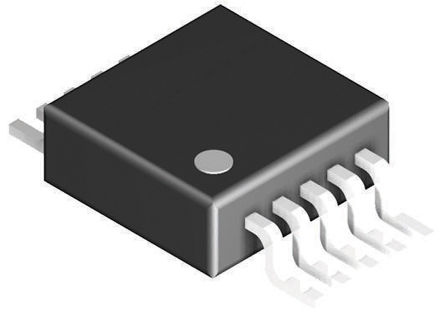

Image is for your reference only,please check specifications for details

TS5A22362DGSR - TI
Manufacturer:
TI
ManyChip's Part#:
MC4501337
Category:
Analog Switch Ic, Analog Switch Multiplexer
Package:
VSSOP-10
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TS5A22362DGSR Analog Switch, Dual Channel, SPDT, 2Channels, 0.94Ω, 2.3V to 5.5V, MSOP, 10Pins
Stock Locations:
Availability:
14 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.47

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TS5A22362DGSR is a single-pole double-throw (SPDT) dual bidirectional Analog Switch designed to operate from 2.3 to 5.5V. The device features negative signal swing capability that allows signals below ground to pass through the switch without distortion. The break-before-make feature prevents signal distortion during the transferring of a signal from one path to another. It features low on-state resistance, excellent channel-to-channel on-state resistance matching and minimal total harmonic distortion (THD) performance.
Low on-state resistance
Low charge injection
Excellent ON-State Resistance Matching
Latch-up performance exceeds 100mA Per JESD 78, Class II
ESD performance tested per JESD 22
Green product and no Sb/Br
Device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

TS5A22362DGSR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	VSSOP-10
Number of Outputs	4 Output
Supply Current	200 nA
Number of Circuits	2 Circuit
Number of Channels	2 Channel
Number of Positions	10 Position
Bandwidth	17.0 MHz
Number of Inputs	2 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	18.3 MHz
Supply Voltage	2.3V ~ 5.5V
	Show
Size-Length	3.1 mm
Size-Width	3.1 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
