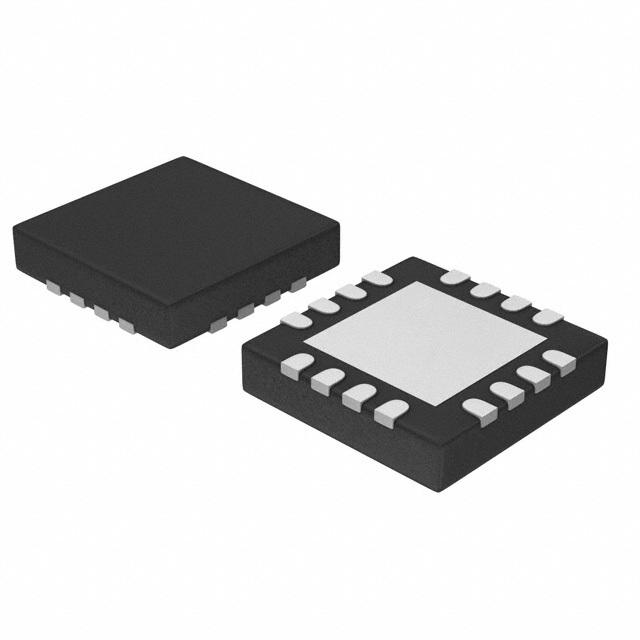

Image is for your reference only,please check specifications for details

TSC2013QRSARQ1 - TI
Manufacturer:
TI
ManyChip's Part#:
MC4075571
Category:
DA Converter, AD Converter IC
Package:
QFN-16
Datasheet:
Datasheet 3D Model
Description:
1.2V to 3.6V, 12Bit, Nanopower, 4-Wire Touch Screen Controller 16-QFN -40℃ to 125℃
Stock Locations:
Availability:
283 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.46

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TSC2013-Q1 device is a very low-power dual-touch screen controller designed to work with power-sensitive, low-cost touch-screen displays in automotive infotainment and navigation systems. It contains a complete, ultralow-power, 12-bit, analog-to-digital (ADC) resistive touch-screen converter, including drivers and the control logic to measure touch pressure.
The TSC2013-Q1 device enables pinch, rotate, and zoom functionality over a standard four-wire interface. The device supports an I2C serial bus and data transmission protocol in all three defined modes: standard, fast, and high-speed. The 10 or 12-bit ADC within is easily programmable to customize system and user experience.

Show

TSC2013QRSARQ1 Specifications
