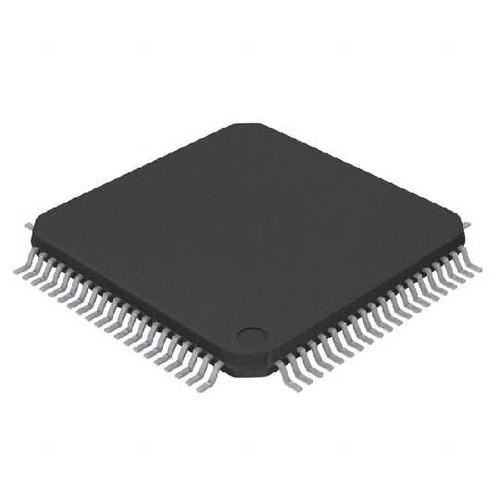

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The UCD9240 is a multi-rail, multi-phase synchronous buck digital PWM controller designed for non-isolated DC/DC power applications. This device integrates dedicated circuitry for DC/DC loop management with flash memory and a serial interface to support configurability, monitoring and management.
- FEATURES
- • Fully Configurable Multi-Output and Multi-Phase Non-Isolated DC/DC PWM Controller
- • Controls Up To Four Voltage Rails and Up To Eight Phases
- • Supports Switching Frequencies Up to 2MHz With 250 ps Duty-Cycle Resolution
- • Up To 1mV Closed Loop Resolution
- • Hardware-Accelerated, 3-Pole/3-Zero Compensator With Non-Linear Gain for Improved Transient Performance
- • Supports Multiple Soft-Start and Soft-Stop Configurations Including Prebias Start-up
- • Supports Voltage Tracking, Margining and Sequencing
- • Supports Current and Temperature Balancing for Multi-Phase Power Stages
- • Supports Phase Adding/Shedding for Multi-Phase Power Stages
- • Sync In /Out Pins Align DPWM Clocks Between Multiple UCD9240 Devices
- • Fan Monitoring and Control
- • 12-Bit Digital Monitoring of Power Supply Parameters Including:
- – Input Current and Voltage
- – Output Current and Voltage
- – Temperature at Each Power Stage
- • Multiple Levels of Overcurrent Fault Protection:
- – External Current Fault Inputs
- – Analog Comparators Monitor Current Sense Voltage
- – Current Continually Digitally Monitored
- • Over and Undervoltage Fault Protection
- • Overtemperature Fault Protection
- • Enhanced Nonvolatile Memory With Error Correction Code (ECC)
- • Device Operates From a Single Supply With an Internal Regulator Controller That Allows Operation Over a Wide Supply Voltage Range
- • Supported by Fusion Digital Power™ Designer, a Full Featured PC Based Design Tool to Simulate, Configure, and Monitor Power Supply Performance.
- APPLICATIONS
- • Industrial/ATE
- • Networking Equipment
- • Telecommunications Equipment
- • Servers
- • Storage Systems
- • FPGA, DSP and Memory Power
UCD9240PFC Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 80 Pin |
| Case/Package | TQFP-80 |
| Frequency | 2 MHz |
| Supply Voltage (DC) | 3.00V (min) |
| Number of Outputs | 4 Output |
| Input Voltage (DC) | 3.30 V |
| Output Current | 6 mA |
| Operating Temperature (Max) | 110 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 3V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 3 V |
| Input Voltage | 3.3 V |
| Show | |
| Operating Temperature | -40℃ ~ 110℃ |
| Product Lifecycle Status | Not Recommended for New Designs |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | 3A991.a.2 |
