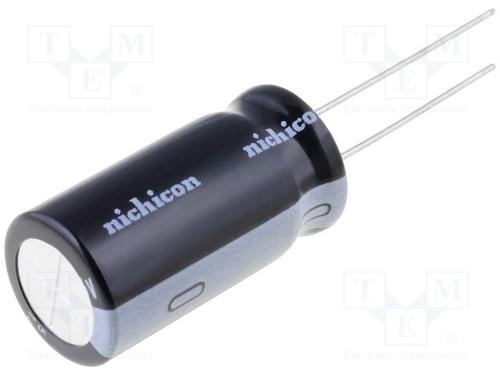

Image is for your reference only,please check specifications for details

UVR1H472MRD - Nichicon
Manufacturer:
Nichicon
ManyChip's Part#:
MC3513856
Category:
Aluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum
Package:
Radial, CAN
Datasheet:
Datasheet 3D Model
Description:
4.7mF ±20% 50V Φ20mm 40mm
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The UVR1H472MRD is a miniature-sized radial leaded aluminium Electrolytic Capacitor, VR series. One rank smaller case sizes than VX series. Printed with white letter on black sleeve marking. An aluminium electrolytic capacitor consists of cathode aluminium foil, capacitor paper (electrolytic paper), electrolyte and an aluminium oxide film, which acts as the dielectric, formed on the anode foil surface.
7050µA Leakage current (short term)
2900mA Rated ripple current (at 120Hz)

Show

UVR1H472MRD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial, CAN
Pin Pitch	10 mm
Voltage Rating (DC)	50.0 V
Operating Voltage	50 VDC
Capacitance	4700 µF
Capacitance Tolerance	±20 %
Part Family	UVR
Ripple Current	2900 mA
Ripple Current (Low Frequency)	2.9A @120Hz
Ripple Current (High Frequency)	3.335A @10kHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	50 V
	Show
Size-Length	40 mm
Size-Height	40 mm
Size-Diameter	20.0 mm
Dielectric Material	Aluminum Electrolytic
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Bulk
Minimum Packing Quantity	150
Life (Hours)	2000h @85℃
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
