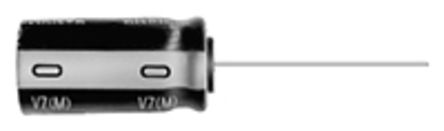

Image is for your reference only,please check specifications for details

UVZ1V470MDD - Nichicon
Manufacturer:
Nichicon
ManyChip's Part#:
MC10904638
Category:
Aluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum
Package:
Radial, CAN
Datasheet:
Datasheet 3D Model
Description:
47uF ±20% 35V Φ5mm 11mm
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

**Features:
**
* Small Case Sizes as Same as VR Series, but Operating Over Wide Temperature Range of –55°c to +105°C**
**
* Compliant to the RoHS directive (2002/95/EC)**
Specifications:
**
* Temperature Range: –55°C to +105°C**
**
* Rated Voltage Range: 6.3-450 V**
**
* Rated Capacitance Range: 0.1 to 33000 μF**
**
* Capacitance Tolerance: ±20% at 120 Hz, 20°C

Show

UVZ1V470MDD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	Radial, CAN
Pin Pitch	2 mm
Voltage Rating (DC)	35.0 V
Operating Voltage	35 VDC
Capacitance	47 µF
Capacitance Tolerance	±20 %
Part Family	UVZ
Ripple Current	93 mA
Ripple Current (Low Frequency)	93mA @120Hz
Ripple Current (High Frequency)	186mA @10kHz
Operating Temperature (Max)	105 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	35 V
	Show
Size-Length	11.0 mm
Size-Height	11 mm
Size-Diameter	5.00 mm
Dielectric Material	Aluminum Electrolytic
Operating Temperature	-55℃ ~ 105℃
Product Lifecycle Status	Active
Packaging	Bulk
Minimum Packing Quantity	6000
Life (Hours)	1000h @105℃
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
