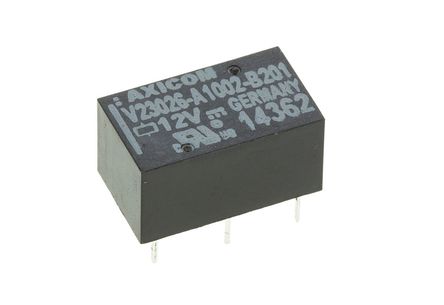

Image is for your reference only,please check specifications for details
- V23026A1002B201 - TE Connectivity
-
Manufacturer:TE Connectivity
-
ManyChip's Part#:MC9129600
-
Category:Industrial Relay
-
Package:DIP
-
Datasheet:Datasheet 3D Model
-
Description:RF RELAY, SPDT, MOMENTARY, 0.005A (COIL), 12VDC (COIL), 64mW (COIL), 1A (CONTACT), 125VDC (CONTACT), 900MHz, THROUGH HOLE-STRAIGHT MOUNT, ROHS COMPLIANT
-
Stock Locations:
-
Availability:352 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 7.09
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 2 pole safety relay with either 1NO+1NC or 2CO contacts, Forcibly guided contacts according to EN 50205, Rated current 6 A, 6 kV surge resistance between poles
V23026A1002B201 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 6 Pin |
| Case/Package | DIP |
| Current Rating | 1 A |
| Input Voltage (DC) | 12.0 V |
| Contacts Type | SPDT |
| Power Consumption | 64 mW |
| Rise Time | 1.00 ms |
| Contact Current Rating | 1 A |
| Coil Voltage | 12 VDC |
| Coil Current | 5.33 mA |
| Coil Power (DC) | 64.0 mW |
| Coil Resistance | 2.25 kΩ |
| Carry Current | 1.00 A |
| Current Rating (Max) | 1 A |
| Coil Voltage (DC) | 12 V |
| Coil Power | 34 mW |
| Input Power (Max) | 30W, 60VA |
| Switching Current (Max) | 1 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating | 12 VDC |
| Show | |
| Size-Length | 13 mm |
| Size-Width | 7.6 mm |
| Size-Height | 6.9 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ELV Compliant | Compliant |
| HTS Code | 8536410050 |
| ECCN Code | EAR99 |
