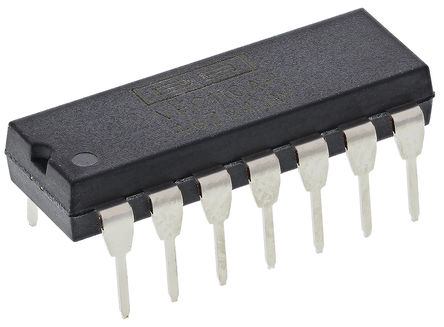

Image is for your reference only,please check specifications for details

VFC110AP - TI
Manufacturer:
TI
ManyChip's Part#:
MC2381504
Category:
Operational Amplifier, OP Amp IC
Package:
PDIP-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS VFC110AP Voltage to Frequency Converter, 400MHz, 10kHz to 4MHz, 0.0002%, ± 8V to ± 18V, DIP, 14Pins
Stock Locations:
Availability:
214 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 16.4

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The VFC110AP is a Voltage-to-Frequency Converter, third-generation VFC offering improved features and performance. These include higher frequency operation, an on-board precision 5V reference and a disable function. The precision 5V reference can be used for offsetting the VFC transfer function, as well as exciting transducers or bridges. The enable pin allows several VFCs" outputs to be paralleled, multiplexed or simply to shut off the VFC. The open-collector frequency output is TTL/CMOS-compatible. The output may be isolated by using an opto-coupler or transformer. Internal input resistor, one-shot and integrator capacitors simplify applications circuits. These components are trimmed for a full-scale output frequency of 4MHz at 10V input. No additional components are required for many applications.
Disable pin
Low jitter
High-frequency operation - 4MHz FS max

Show

VFC110AP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	PDIP-14
Frequency	400 MHz
Supply Current	13.0 mA
Number of Positions	14 Position
Bandwidth	4.00 MHz
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-25 ℃
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-25℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
