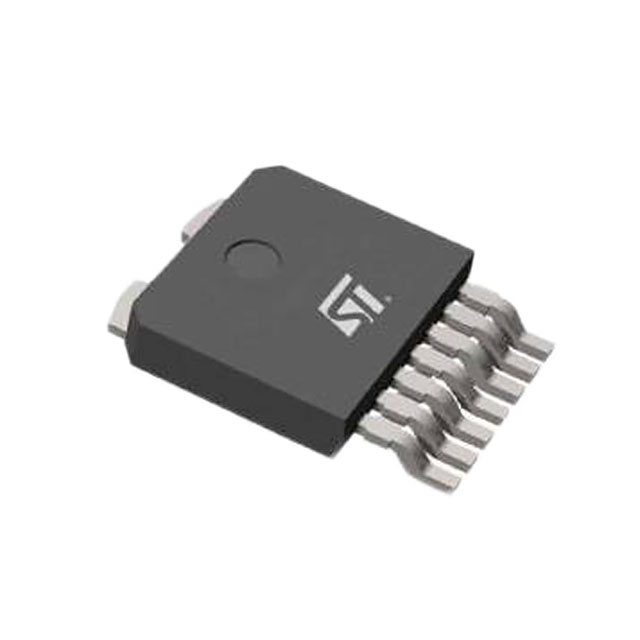

Image is for your reference only,please check specifications for details

VN7004CLHTR - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC145481014
Category:
Switching Power Supply, Power Switch
Package:
Octapak-7
Datasheet:
Datasheet 3D Model
Description:
Current Limit SW 1IN 1Out to 175A Automotive 8Pin(7+Tab) Octapak T/R
Stock Locations:
Availability:
249 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.98

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

VN7004CLHTR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	Octapak-7
Number of Outputs	1 Output
Output Current	175 A
Number of Positions	8 Position
Drain to Source Resistance (on) (Rds)	4 mΩ
Output Current (Max)	80 A
Number of Inputs	1 Input
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage (Max)	28 V
Supply Voltage (Min)	4 V
Input Voltage	13 V
	Show
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
