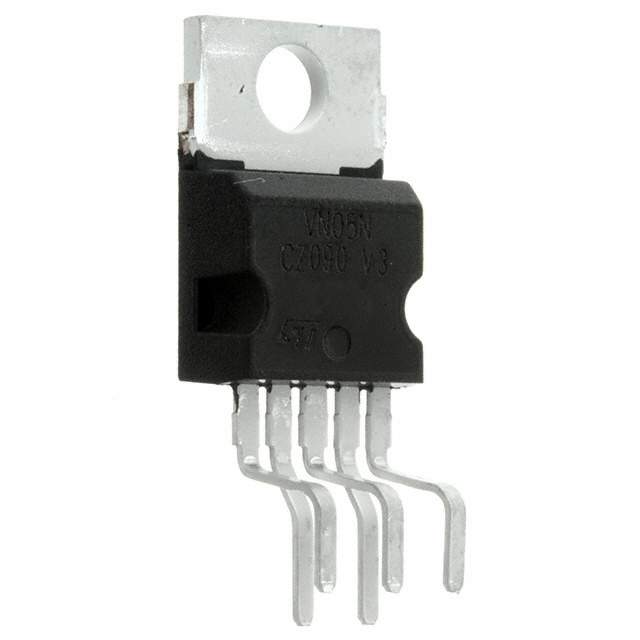

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The VND10BSP is a monolithic device made using SGS-THOMSON Vertical Intelligent Power
- Technology, intended for driving resistive or inductive loads with one side grounded. This
- device has two channels, and a common diagnostic. Built-in thermal shut-down protects
- the chip from over temperature and short circuit. The status output provides an indication of open
- load in on state, open load in off state, overtemperature conditions and stuck-on to VCC.
- ■ OUTPUT CURRENT (CONTINUOUS): 14A @ Tc= 85oC PER CHANNEL
- ■ 5V LOGIC LEVEL COMPATIBLE INPUT
- ■ THERMAL SHUT-DOWN
- ■ UNDER VOLTAGE PROTECTION
- ■ OPEN DRAIN DIAGNOSTIC OUTPUT
- ■ INDUCTIVE LOAD FAST DEMAGNETIZATION
- ■ VERY LOW STAND-BY POWER DISSIPATION
VND10B Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 5 Pin |
| Case/Package | Pentawatt-5 |
| Number of Outputs | 2 Output |
| Load Current | 14 A |
| Power Dissipation | 75000 mW |
| Output Current (Max) | 3.4 A |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 75000 mW |
| Supply Voltage | 6V ~ 26V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Obsolete |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
